SC APC Fiber Optical Connector 3.0x2.0mm
Price:
Negotiation By email or Phone Call
MOQ:
MOQ Saying is 1000pcs
Delivery Time:
7-10 Business Days
Brand:
Hangalaxy
Product Description

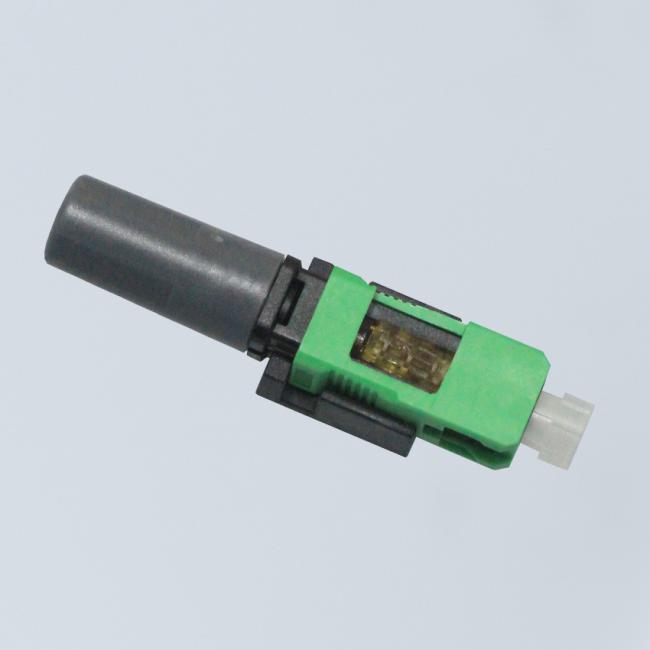

3.0 x 2.0mm SC APC Green Fiber Optical Field Assembly Connector
Product Description
This kind of Field Assembly SC Connectors from NEATEL is designed for quick termination and fiber network recovery without using fusion splicer. And it is applied in Thailand Telecom Projects for many years, The features of fast and easy to use, these connectors suit all operations with high precision and high reliability functions.
Feature
1, Better Ratio of Performance over Cost.
2, Push-Pull design.
3, Comes with wedge unit (exclude stripper and cleaver).
4, More convenient and save time.
Technical Parameter
| Part No. | NT-SCF002 |
| Cable Size (mm) | 2.0x3.0mm Drop Cable |
| Polishing Type | APC / UPC |
| Housing | Green / Blue |
| Ferrule Material | Ceramic (Zirconia) |
| Dimension (mm) | 50 |
| Insertion Loss (dB) | 0.3 (Typical); 0.5 (Max) |
| Return Loss (dB) | UPC ≥ 40; APC ≥ 60 |
| Tensile Strength (N) | >20 |
| Individual Weight | 0.003kg |
