MoSi2 Rod Industrial Heating Elements Sintering Furnace Fast Heating 1800C
MoSi2 Rod Heating Elements Sintering Furnace Fast Heating 1800C
MoSi2 Heating Element Introduction
1. MoSi2 heating elements is a kind of resistance heating element made from Molybdenum Disilicide.
2. It’s mainly used in high temperature furnaces and kilns as heaters.
3. It can be used in air and various gases environments.
4. Working temperature of MoSi2 heating element is 1300C to 1800C.
5. Widely used in the industries of metallurgy, glass, ceramic refractory,crystal electronic device, industrial furnace manufacture, etc
* Shape: I, U, UL, W, WL, Irregular
* Diameter: 3/6, 4/9, 6/12, 7/12, 7/14, 9/18, 12/24(mm)
* Temperature: 1700°C, 1750°C, 1800℃
MoSi2 rods are widely used in the fields of metallurgy, steel making, glass, ceramics, refractory materials, crystals, electronic components, semiconductor materials research and production, especially for high-performance precision ceramics, high-grade artificial crystals, Production of precision structural cermet, glass fiber, optical fiber and high-grade alloy steel.
Silicon carbon rods are non-metallic heating elements. They are made of high-purity green hexagonal silicon carbide as the main raw material and recrystallized at a high temperature of 2200 ° C. The normal use temperature can reach 1450 ° C. Under reasonable use conditions, continuous use exceeds 2000 hours. Used in the air, without any protective atmosphere. Suitable for all kinds of electric furnaces
Physcial property of 1800C MoSi2 rod:
| Density | Bending Strength | Hardness | Apparent Porosity | Water Absorption | Elongation | Fracture Toughness | Compressive Strength |
| 5.8g/cm3 | 350Mpa | 12.0Gpa | ±2% | 0 | 4% | 4.5Mpa.m1/2 | 650Mpa |
Operation temperature of MoSi2 rod in different atmosphere
| Atmosphere | 1700 Type | 1800 Type |
| Air | 1700 | 1800 |
| N2 | 1600 | 1700 |
| He | 1600 | 1700 |
| -80°C Dry H2 | 1150 | 1150 |
| -20°C Wet H2 | 1450 | 1450 |
| 10%CO2, 50%CO, 15%H2 | 1600 | 1700 |
| 40%CO2, 20%CO | 1400 | 1450 |
| Cracked and Partially Burnt Ammnia | 1400 | 1450 |
Packaging & Shipping
Package: Package: Synthetic wooden case padded with foams
We also received OEM service; the package can be designed according to your requirements.
Shipping: By vessel or by plane from any Chinese port, Samples can be delivered by International express.
SUPER Machinery Service
1. Timely response
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Free sample
Sample and trial order is accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service

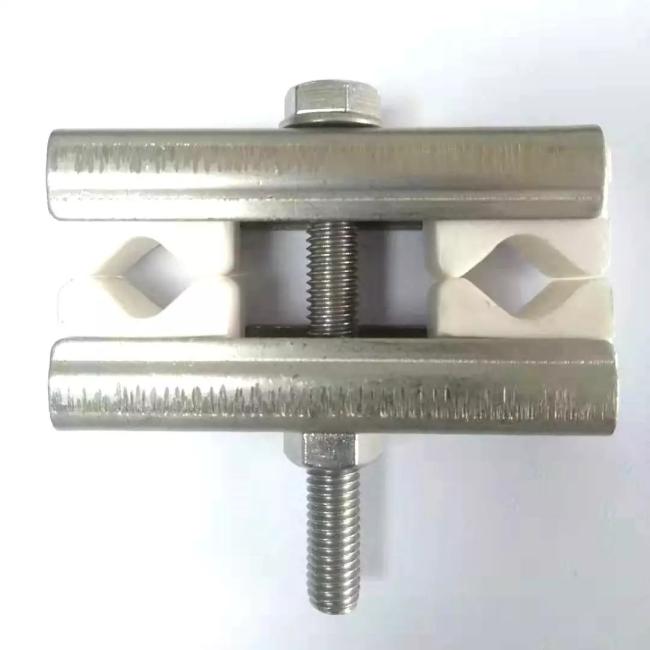

MoSi2 rod connect clamp and belt
