Large Diameter 650 Uhp Graphite Electrode For Eaf Steel Making 26" Eco - Friendly
650UHP Graphite Electrode for EAF , Large Diameter , Ultra High Power , 26" , Steel Making
Company Introduction:

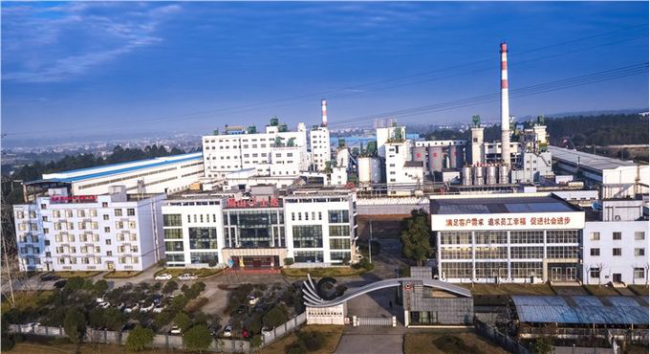

Sichuan Guanghan Shida Carbon Co.,Ltd. was established in 2001, formerly the Shanxi Jiexiu Shida Carbon which was founded by Mr. Zhang Shigong in 1990.
Shida plays an important role in Chinses graphite electrode industry:
Vice Chairman of China Association of Small & Medium Enterprises;
Director of Carbon Industry Association of China;
Member of Carbon Material Council of Chinese Society for Metals;
Member of China Special Steel Enterprises Association.
- Kneading System: Best Japan made high-power hot kneading system, guarantee high uniformity of paste；the cooling kneader avoid balling and keep raw material with good quality;
- Extruding System: High vacuum extruding system (one set 3500mt power and one set 2500mt power), PLC program controlled, excellent for production Φ400-700mm electrodes;
- Baking System: Best car bottom furnace with our own innovated tail gas incineration and waste heat generation system, highly equalized temperature inside, ensure high homogeneity of baked electrodes；
- Impregnation System: Fully automatic, high vacuum and pressure, hot in- cool out;

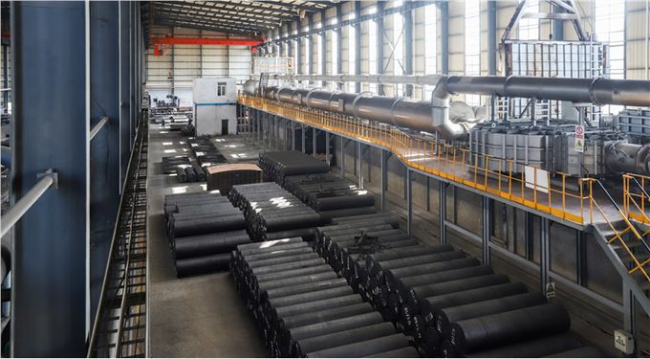

- Graphitization Systems: One Acheson graphitization furnace and one LWG furnace, temperature between 2800-3000 ℃, high level of graphitization.
Shida UHP650 Properties
| Nipple | |||||
| Nipple | AD | SPR | MOR | MOE | CTE//cmcmC |
| (gm/cc) | (ohm Micro mtr) | (N/mm2) | ( kg/mm2) | x10-7(0-50℃) | |
| g/cm3 | µΩ.m | MPa | GPa | 10-6/℃ (100-600℃) | |
| MAX | 1.83 | 3.6 | 27 | 16 | 1.1 |
| MIN | 1.8 | 3.2 | 23 | 17.5 | 0.98 |
| Electrode | |||||
| Electrode | AD | SPR | MOR | MOE | CTE//cmcmC |
| (gm/cc) | (ohm Micro mtr) | (N/mm2) | ( kg/mm2) | x10-7(0-50℃) | |
| g/cm3 | µΩ.m | MPa | GPa | 10-6/℃(100-600℃) | |
| MAX最大 | 1.74 | 5 | 12 | 10.5 | 1.25 |
| MIN最小 | 1.71 | 4.5 | 9.5 | 9 | 1.15 |

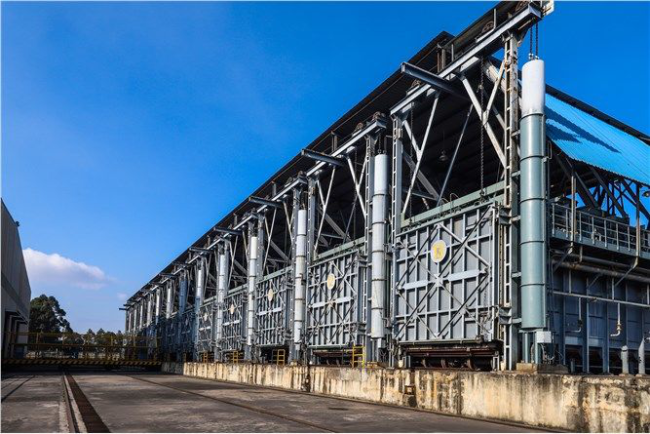

Baking System:Car bottom baking furnace
Impregnation System:Fully automatic,high vacuum and pressure,hot in-cool out.

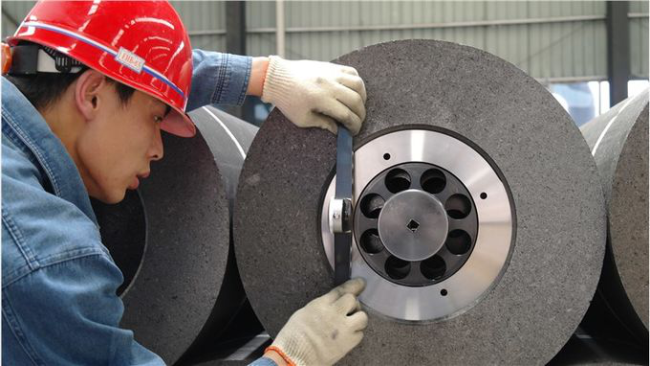

Japan Plug Gauge Inspection
