450mm High Power Graphite Electrode 18 Inch Hp Graphite Electrodes For Eaf
450mm High Power Graphite Electrode , 18 Inch HP GE for LF

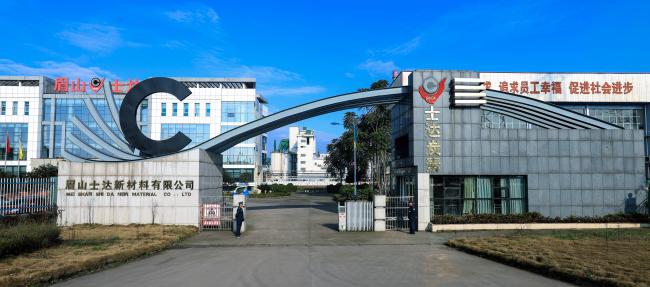

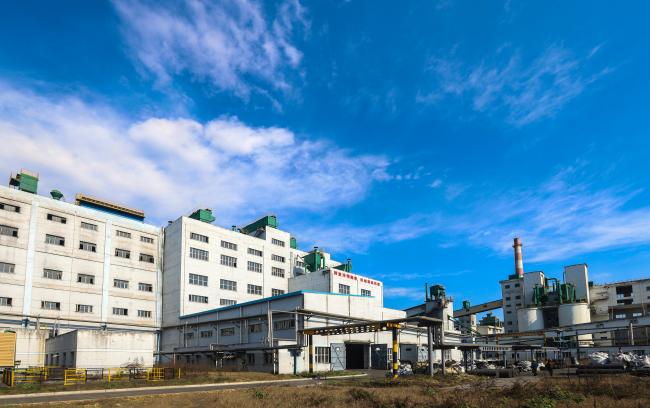

Sichuan Guanghan Shida Carbon is the famous and large plant of manufacturing graphite electrode in China.
The technology and equipment has stride into the advanced level worldwide: By importing core equipment of key processes from the United States, Germany and Japan, the technology and equipment of Shida Carbon has stood on the same line along with the most advanced carbon companies, more importantly our product quality has reached the advanced level as well.
Key Euipment Information:
LWG:
Temperature difference in inside is huge;
Big volume of each loading;
High power consumption;
Acheson Graphitization Furnace:
Heating electrode by its own resistivity, more effective and higher homogeneity of graphitization;
Similar heating process to arc furnace, like a pre-selection, disqualified pcs. will not be sending to steel production;
| Item | Unit | UHP | HP | RP | UHP Nipple | HP Nipple | |||
| 450-500mm | 550-700mm | 450-500mm | 550-700mm | 400-450mm | 500-700mm | ||||
| Bulk Density | g/cm3 | 1.66-1.73 | 1.68-1.75 | 1.60-1.70 | 1.62-1.72 | 1.55-1.65 | 1.54-1.64 | 1.80-1.85 | 1.72-1.80 |
| Resistivity | μΩm | 4.8-6.0 | 4.5-5.8 | 5.2-7.5 | 5.5-7.2 | 7.5-9.0 | 8.0-9.5 | 3.0-4.3 | 4.0-6.0 |
| Flexual Strength | MPa | 10.5-15.0 | 10.0-14.0 | 10.5-14.5 | 9.0-13.5 | 8.0-11.0 | 7.0-10.0 | 20.0-30.0 | 18.0-25.0 |
| Elastic Modulus | GPa | 8.0-10.0 | 8.0-12.0 | 6.0-9.3 | 16.0-20.0 | 12.0-16.0 | |||
| CTE (30-600) | 10-6/℃ | ≤1.5 | ≤2.2 | ≤2.8 | ≤1.3 | ≤2.0 | |||
| Ash Content | % | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | |||
