610mm 2700mm Ash Max 0.2% , UHP Graphite Electrodes
610mm 2700mm Ash Max 0.2% , UHP Graphite Electrodes
Sichuan Guanghan Shida Carbon Co., Ltd. ,established in 1990, is a high-tech company, professional production of graphite electrode 30 years. The range of graphite electrode is 450-700mm diameter with RP,HP,UHP grade. Especially UHP600,UHP650 and UHP700 are our main sales products.
Shida also conducts foreign advanced technology in Meishan project such as the technology of car bottom furnace and independent integrated innovation equipped with tail gas incineration waste heat power generation system at the same time.

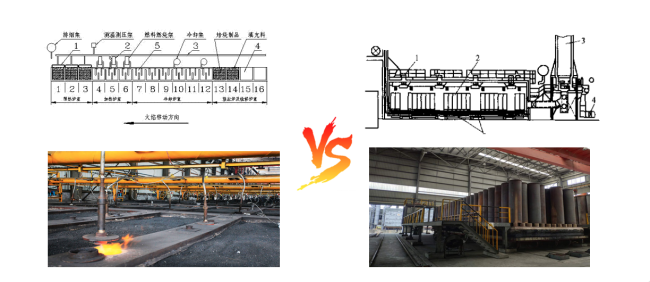

Comparison of traditional baking furnace and car bottom furnace is as follows:
Shida Carbon Graphite Electrode Properties
| Item | Unit | UHP | HP | RP | UHP Nipple | HP Nipple | |||
| 450-500mm | 550-700mm | 450-500mm | 550-700mm | 400-450mm | 500-700mm | ||||
| Bulk Density | g/cm3 | 1.66-1.73 | 1.68-1.75 | 1.60-1.70 | 1.62-1.72 | 1.55-1.65 | 1.54-1.64 | 1.80-1.85 | 1.72-1.80 |
| Resistivity | μΩm | 4.8-6.0 | 4.5-5.8 | 5.2-7.5 | 5.5-7.2 | 7.5-9.0 | 8.0-9.5 | 3.0-4.3 | 4.0-6.0 |
| Flexual Strength | MPa | 10.5-15.0 | 10.0-14.0 | 10.5-14.5 | 9.0-13.5 | 8.0-11.0 | 7.0-10.0 | 20.0-30.0 | 18.0-25.0 |
| Elastic Modulus | GPa | 8.0-10.0 | 8.0-12.0 | 6.0-9.3 | 16.0-20.0 | 12.0-16.0 | |||
| CTE (30-600) | 10-6/℃ | ≤1.5 | ≤2.2 | ≤2.8 | ≤1.3 | ≤2.0 | |||
| Ash Content | % | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | |||
