Dock Crane Windlass Woven Asbestos Free Brake Lining
Non-asbestos Woven Brake Lining dock crane braking deceleration transmitting power

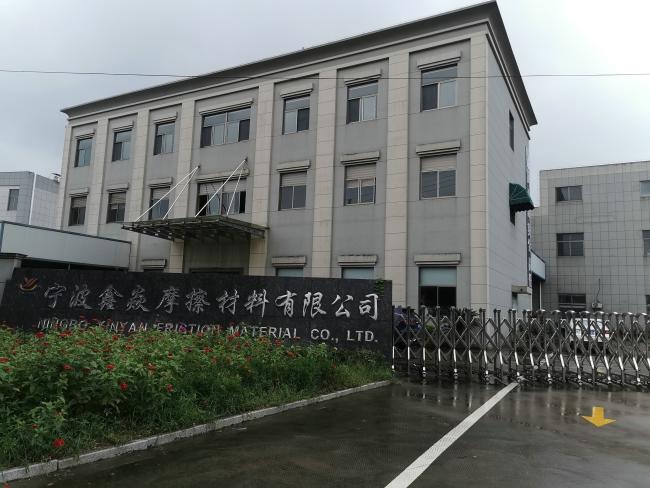

Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European, Asian,Africa, South American markets. As the leading manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker.Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment,Ningbo Xinyan is capable to offer the compared testing service and customized friction products.

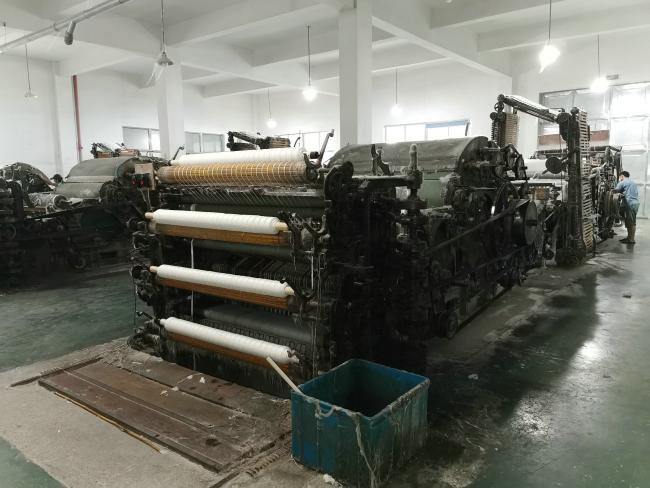

Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control.Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty. You could wechat/whatsapp me at (86) 13771895935 to get more informations.
Quick Detail:Non-asbestos Woven Brake Lining dock crane braking deceleration transmitting power
Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow
Description:Non-asbestos Woven Brake Lining dock crane braking deceleration transmitting power
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.
We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
Specifications:Non-asbestos Woven Brake Lining dock crane braking deceleration transmitting power
|
Temperature |
Coefficient of friction(μ) |
Wear rate(v)(cm³/N.m) |
|
100℃ |
0.35~0.65 |
≤0.7 x 10-7 |
|
150℃ |
0.35~0.65 |
≤1.1 x 10-7 |
|
200℃ |
0.30~0.60 |
≤1.5 x 10-7 |
|
250℃ |
0.25~0.60 |
≤2.5 x 10-7 |
Competitive Advantage:Non-asbestos Woven Brake Lining dock crane braking deceleration transmitting power
It is widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.
