Large Capacity Flexo Printer Slotter Machine Water Based Printing High Overprint Accuracy
Type 1224 High Speed Lead Edge Paper Feeder 4 Colors Water Based
Flexo Printer Slotter Die cutter Machine
summarize
The machine for printing words and images. Modern presses are usually made up of plates, ink, embossing, and paper feeding (including folding). The principle of it is to make the printed text and image printed on the printing press, and then apply the ink to the printing plate with words and images, and then directly or indirectly to the paper or other printed materials (such as textiles, metal plates, plastic, leather, wood, glass, and ceramics). In order to reproduce the same print as the printing plate. The invention and development of printing machines play an important role in the transmission of human civilization and culture.
Main Feature
High precision bevel gear,adopt 20CrMnTi quality steel, carburizing quenching, fine grinded gear,transmission gear of high strength, good wear resistance, low noise, longtime ensure the machine rotation precision.Lubrication adopt closed type spray lubrication system, to ensure transmission accuracy and use-life
Detail
Feeding Unit
1. Lead-edge suction feeding system, easy operation, high accuracy.(adopts lead feeder system).
2. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.
3. Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.
4. Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.
Printing Unit
1. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running.
2. Auto-zero function,order memory.
3. Printing roller plate-change and fix-plate function.
4. Optional ceramic roller,used Guangzhou Guangtai brand.
5. Pneumatic diaphragm pump, simple operation, convenient maintenance, supply stability.Circulating pneumatic ink.Screen for filtering impurities, guarantee printing quality.
6. Printing phase adjustment of PLC computer display adjustment.

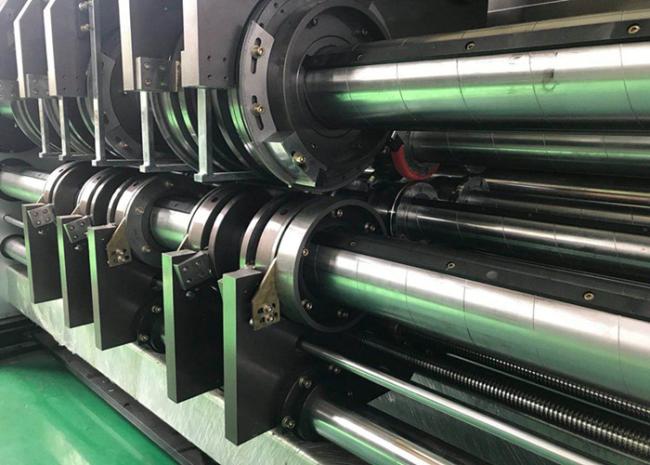

Slotting Unit
1. Single-axle double-knife slotter, use Internal tooth structure adjutment the height of box, So that oil does not easily contaminated cartons
2. The first pressure line round, after preloading cardboard not easily crush.Slotting phase and box height, computer and electric digital control.
3. Preload, creasing gap adjustment adopt mechanical control.The slotter knife stock gap adjustment adopt self-locking structure.
4. The slotter knife adopt postive or Anti-knife manner(optional).
5. Computer automatic arrange knife, can stockpile 999 memories.
Die Cutting Unit
1. Rubber roller mechanical spiral commutation 40mm move about horizontal structure.
2. Die-cutter phase, computer and electric digital control Horizontal phase, computer and electric digital control, range ±5mm.
3. Rubber roller and die roller gap use computer and electric digital control.
4. Adjust the transfer roller use computer and electric digital control.
5. Stripping the belt longitudinal output,to easy clean waste paper.
|
Type 1224 High Speed Lead Edge Paper Feeder 4 Colors Water Based Flexo Printer Slotter Die cutter Machine |
|
|
Max Machine Speed (pcs/min) |
200 |
|
Economic Working Speed (pcs/min) |
150-180 |
|
Max Feeding Size (mm) |
1200×2600 |
|
Max Printing Size (mm) |
1200×2400 |
|
Skip-feeding Size (mm) |
1500×2600 |
|
Min Feeding Height (mm) |
280(Low speed, full printing) |
| Standard Plate Thickness (mm) | 7.2 |
|
Suitable Cardboard Thickness (mm) |
2 - 11 |
|
Main Motor Power (kw) |
22 |
|
Total Power (kw) |
50(according to the QTY of unit) |
|
Overall Dimensions (mm) L*W*H |
10000×4800×2100 |
