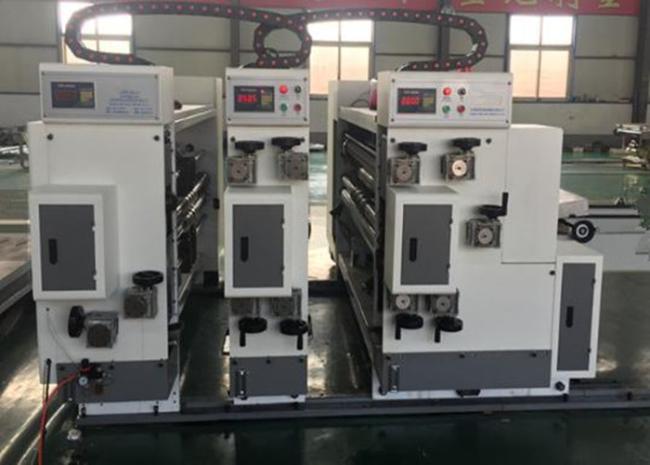

Self Locking Flexo Printer Slotter Die Cutter Carton Printing Machine

Printing Department

1. Printing roller adopts seamless steel pipe, surface grinding, hard chromium plating, balance correction, smooth operation.
2. Fast change plate device, when loading and unloading printing plate, pedal switch electric control roller roll forward and backward.
3. Self - locking structure is adopted for paper feeding roller, stamping roller, rubber roller and roller gap adjustment.
4. Printing roller phase adjustment is PLC and electric digital input 360 degree adjustment, stop and run can be adjusted.
5. Printing roller lateral adjustment adopts PLC and electric digital adjustment, adjustment range is 10mm
6. Printing phase fixing device, pneumatic brake mechanism, when the unit is separated and adjusted or cleaned, the brake mechanism restricts the gear rotation and maintains the fixed position of the original gear position.
7. Reticulated roll adopts a pneumatic lifting device with a paper feeding system.
8. Pneumatic diaphragm pump inking, automatic circulation, add water to clean.
9. Erase memory function. After printing the printing plate, you can go back to the original printing position.

Slotting Department

1. The prepress wheel is not easy to crack after prepressing.
2. Single shaft double tool slotting, box height adjustment using PLC and digital electric adjustment. (also PLC and touch screen adjustment)
3. The slotting phase is adjusted by PLC and electric digital input 360 degrees, and the downtime and operation can be adjusted. (also PLC and touch screen adjustment)
4. The transverse movement of slotting tool holder and pressing wheel is adjusted by synchronous electric motor. (also can be adjusted by PLC touch screen, directly input carton size, automatic adjustment).
5. The indentation gap and cutter shaft clearance adjustment adopt self-locking mechanism.
6. Slotting tool box height adjustment with anti-collision protection device, will not damage the machine.
7. Slotting cutter seats are transversed, and there are anti-collision protection devices. (Electronic)
8. Slotting tool width 7mm, alloy material, heat treatment, grinding, toothed slotting knife, double blade trimming knife, knife edge sharp, high precision.
9. It can be equipped with hand-held punching die seat.
