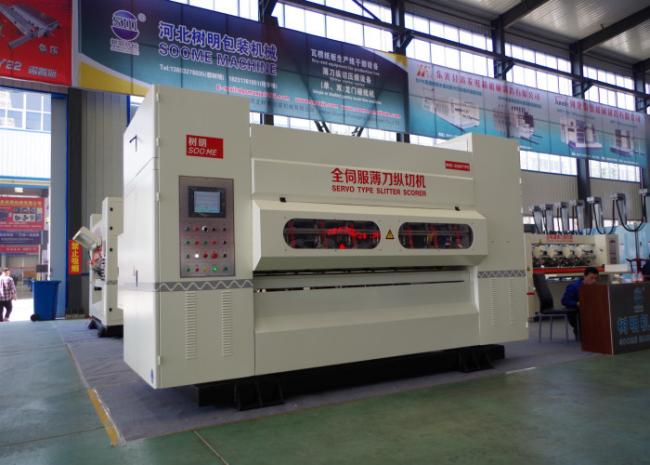

Carton Box Corrugated Paper Cutting Machine Electric Computer Straight Knife
Carton Box Corrugated Paper Cutting Machine Electric Computer Straight Knife
Function and Features :

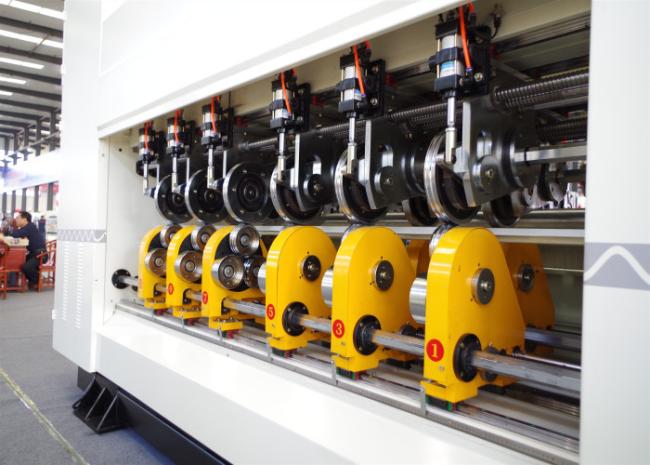

l Individual step motor and controller on each slitter and scorer sets,quick and accurate order change.
l Slitters and scorers are inverter controlled,speed synchronizes with board speed.
l Two rows of scorers,realizes minimum scorer spacing is 0mm.
l There are three types of scorers. Front row: Male-to-flat/ Pre-score; Back row: Male-to-female.
l Electric score-depth adjust.
l Alloyed steel thin-blades,sharp and long life of over 800 million meters ,auto sharpening.
l Standard motorized body left-right rectification controlling system.

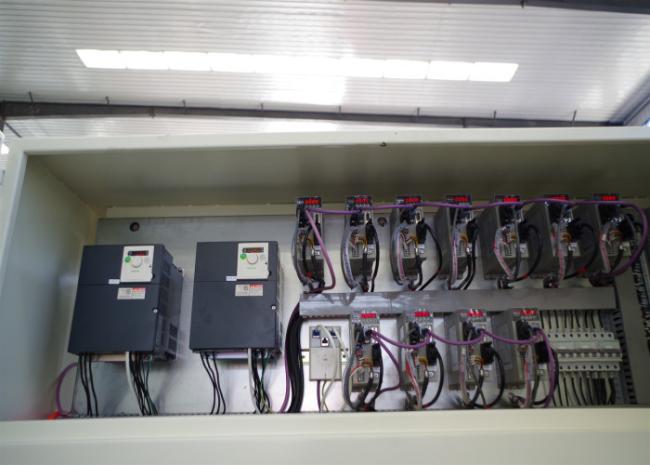

l Individual sealed electrical cabinet,dust-free,constant temperature and humidity ensure longer life.
l Standard touch screen monitor,easy to operate.
l Standard communication interface,easy to link with management system.
l You can add color code tracker or absorption of waste.
l A memory of 999 orders.Non-stop changeover or manual change over can be realized.
Technological parameter:
| TYPE | SMBD-BJ-1800 | SMBD-BJ-2000 | SMBD-BJ-2200 | SMBD-BJ-2500 | |
| Effective width | 1700mm | 1900mm | 2100mm | 2400mm | |
| knife configuration | 5,6 | 5,6 | 6,7 | 6,7 | |
| Scorer configuration | 8,10 | 8,10 | 10,12 | 10,12 | |
| Order change time | Common type | 3-8s | 3-8s | 3-8s | 3-8s |
| AC servo type | 1-3s | 1-3s | 1-3s | 1-3s | |
| Min. Slitter-spacing | 160mm | 160mm | 160mm | 160mm | |
| Min. Score-spacing | 0mm | 0mm | 0mm | 0mm | |
| Slitter/Scorer precision | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | |
| Body rectification range | 200mm | 200mm | 200mm | 200mm | |
| Dimensions L x W x H (mm) | 3050*1900*2450 | 3250*1900*2450 | 3450*1900*2450 |
3750*1900*2450 |
|
Our Team Service
WARRANTY:
1 year warranty after installation,of the spare parts is broken in the warranty period,we will send replacement parts as free,but delivery cost will be your account.
INSTALLATION AND TRAINING
We can send 1-2 engineers to install and set up machine,but all the charges should be paid by buyer.
Packaging:
Packed by plastic film.(If customer need wooden case pack need payment by buyer)
Shipping:
From Tianjin port To Destination country.
Delivery Time:
Shipped in 30 days after payment.(For details, please consult)
