Electric Semi Automatic Carton Folding Gluing Machine Reduce Floor Space
Electric Semi Automatic Carton Folding Gluing Machine Reduce Floor Space
Usage and Features:
This machine is suitable to various kinds of corrugated cartons folding gluing. Easy to operate and learn, no need experienced workers. Order changing fast within one minute.
The min. width and height of finished box can reach to 260mm which is a good choice for carton manufacturer.

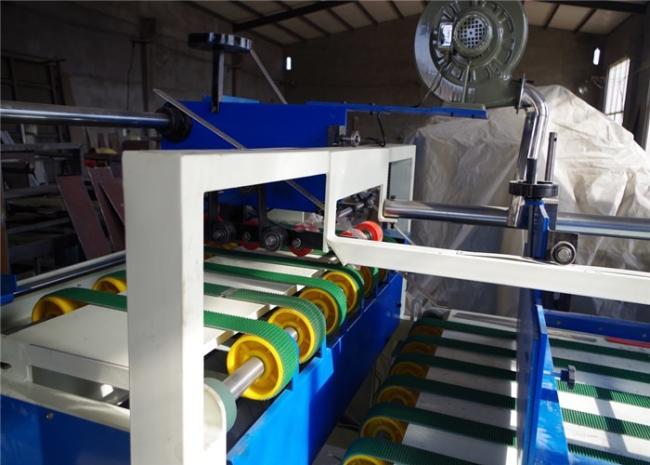

Main structure:
Composed of main machine frame, 2 small conveyor frames.
Main machine frame:

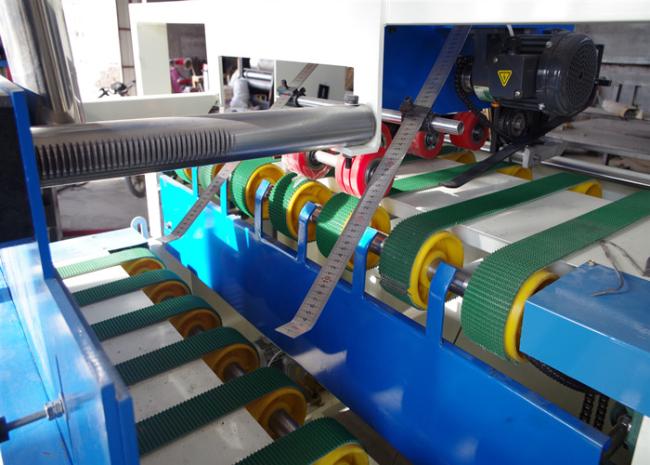

Machine frame, ascend and descend worktable, front part convey equipment, front part correction equipment, middle part convey equipment, middle part press together equipment, finished product side output equipment, electrical controlling device.
Electric elements and material:
Adopted imported electrics, Simens electric appliance, Omron optoelectronic switch, TOKY counter, Taiwan Mingwei switch power supply.

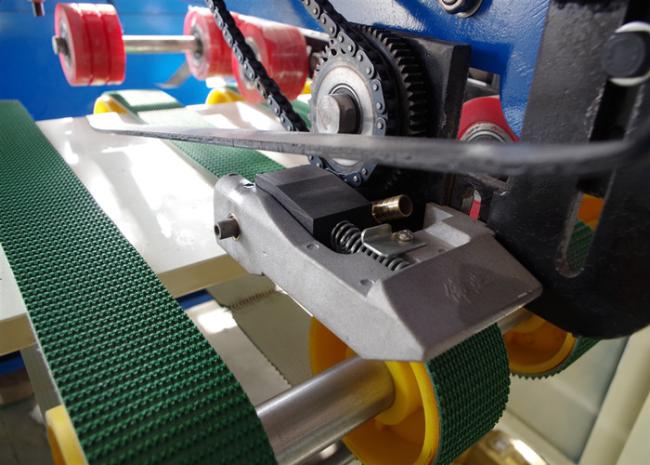

Alloy gluer head is acid and alkali resistant, long working life. The motors all adopted Taiwan Shengbang motor except air blower and lifting motor.
Technical parameters:
| SMZX-2800 | |
| Max. Size (L+W) x 2 | 2800mm |
| Min. Size (L+W) x 2 | 340mm |
| Max. Size (W+H) x 2 | 1515mm |
| Min. Size (W+H) x 2 | 260mm |
| Feeding pile height | 1000mm |
| Motor power | 4kw |
| Machine length | 5300mm |
| Machine weight | 2150kg |
| Machine speed | 60m/min |
