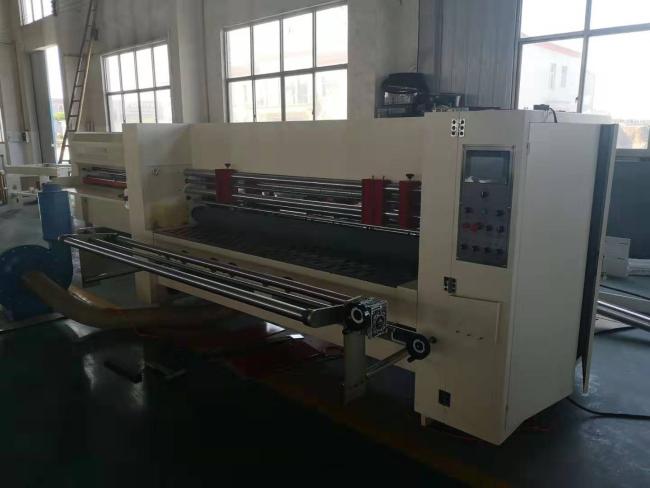

Independent NC Cardboard Slitting Machine Automatic Slitter Pre Creasing


No.s of slitting scoring   4 blade/6 scorer or 5 blade 8 scorer
Max.production speed   180m/min
Max.feeding width          The Max.slitting between the two blades:2750mm
Max.slitting width           3100mm
Min.slitting width            180mm
Min.feeding length         450mm
Min.scoring distance      40*135mm
Gap adjustment             Lead edge
Main motor power          5.5-6KW

Human machine interface —PLC control,The system for robot operating system more humanized, simple structure, easy to maintain.
Function profile:
1. Manual/auto feeder is available
2. Pre pressing roller,slitting blade and scorer holder are auto adjusted
3. Grinding knife is auto/manual
4. Cardboard thickness and press power are auto adjusted
5. Jog for fine-adjusted
6. User-defined to set the distance of blades and scorers
7. Auto counter
8. Slitting and press line precision ±0.5mm

Auto slitter scorer :
◆ Human machine interface —PLC control,auto change order speed 1-20S,error precision±0.5 mm.
◆ Operation humanized,worker use operation use easy.
◆ Slitting part:Adopt high quality tungsten steel thin blade,sharp and long work life,slice more tidy.
◆ The two sides of thin blade are cut separately by rubber wheel press board,to prevent the bad effect of straight line.
◆ Grinding part adopt auto and manual two type pneumatic grinding part.
◆ Electric part adopt China brand or import brand,reliable performance .
◆ This machine can memory 999 group order.
◆ Match auto feeder paper adjusted paper sheet size.
◆ Adopt import rubber roller,long work-life.
◆ Low noise, easy maintenance, high economic benefit.
◆ Better adapt to a variety of cardboard, and stable and accurate feeding paper.
