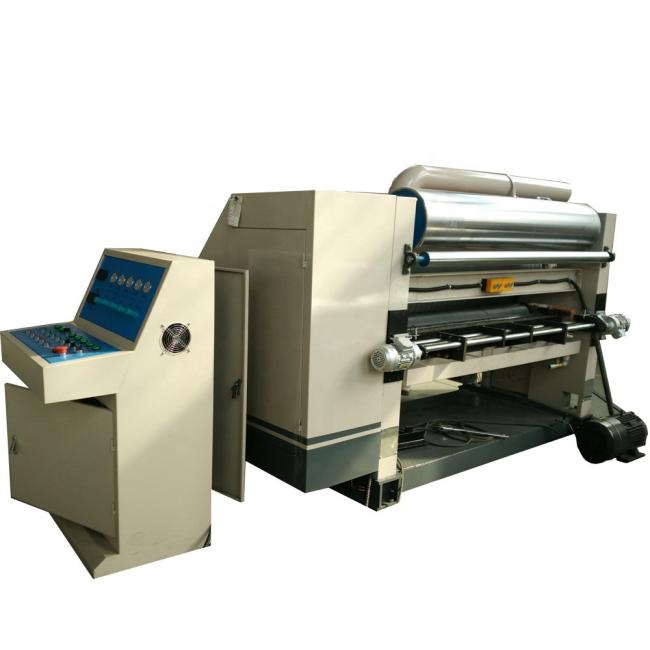

Single Face Automatic Corrugated Machinery With Oil And Steam Controlling

1. Summarize

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line
consists of the mill roll stand, liner( medium paper ) pre-heater, single facer machine, conveyor bridge , gluing machine, double facer machine, slitter scorer, cut-off, conveyer and stacker, heating system, air compression system and glue making system and so on.

2. Features and Characteristics

1) Design speed :120-180m/min
Effective width:1400-2500mm

2) Corrugated roller diameter:

  Vacuum suction type pulling cardboard with wind control device.

3) Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
Used gimbal drive with independent gear box, transmission more stable, close style gear transmission oilness lubricated, prolong
the use life of gear.

4) The upper corrugating roller, pressure roller and glue roller adopt pneumatic control.

3. Technical Parameters
