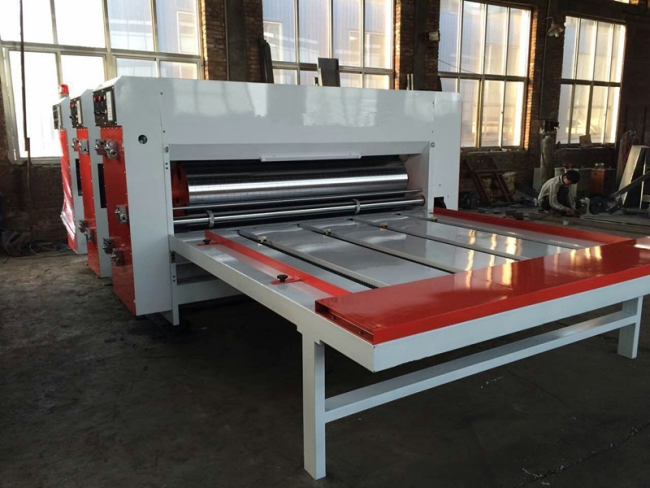

Chain Feeding Automatic Corrugation Machine With Printing Rotary Slotting

Summarize

First will be printed words and images to make plate, installed on the printer, then by artificial or printing ink coating on the plate there is words and images, and then directly or indirectly, transfer to the paper or other substrates (such as textile, metal, plastic, leather, wood, glass and ceramics), so as to reproduce the same as the plate of the print.

Features

1. The whole machine baffle and key parts are all treated by tempering to decrease the metal internal force and all made in the high-precision processing center and grinded by the numeric-controlled grinder.
2. All the axles and rollers of the whole machine are made of high-quality steel and treated by tempering and grinding followed by high-precision computer dynamic balance rectification. They are all plated with rigid chrome and grinded surface.
3. All transmission gears are made by 20CrMnTi alloy steel, which is grinded after heat-treatment, rigidity HRC58-62,and which is made by rubbing,6 grade precision to maintain high topping precision after long using.
4. All transmission parts (connected with the axles and gears) adopt the hand-free connecting ring to eliminate the interval, suitable for long-term high-speed running.
5. All transmission bearings adopt strengthened model bearing, equipped with dust proof wind tight parts and the oiling, handy to maintenance, lasting for longer using.

Functions and Characteristics

1. The whole machine working interval adjustment adopts fast spanner-free adjustment and the electromagnetic brake system with the worm wheel and worm setting operates fast and conveniently.
2. The mainframe chooses control by conversion frequency ,with more stable and energy-saving start-up and running.
3. Option for the vacuum adsorption, kick feeding or leading edge feeding.
4. Optional equipment :ceramic anilox roller ,remote computer diagnosis system.

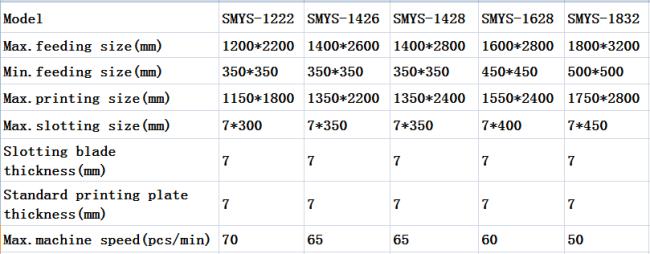

Technical Parameters
