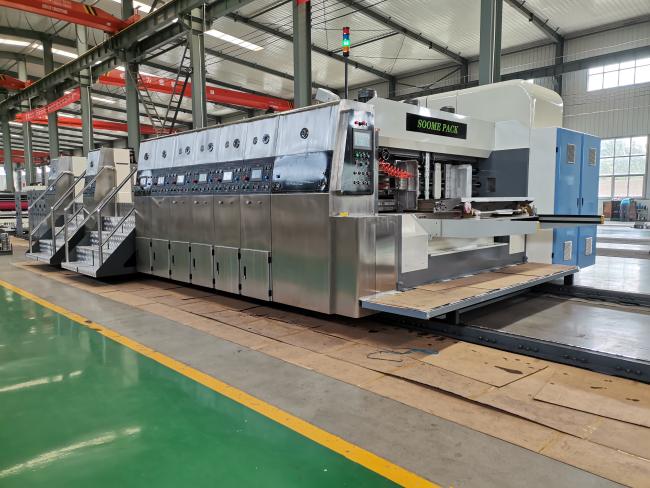

Lead Edge Feeding Printing Slotter Die Cutter Machine With Servo Motor

1. Summarize

New type design and new shaping type can be shown from this machine. This machine adopts feeding unit, printing unit, die cuting unit and glazing unit. The feeding unit has lead edge feeding type, more convenient and safe. The printing unit has multiple printing colors, makes the results of printing more clearly.  At the same time, this set of machine equipped die cutting and glazing, permits the interface of paperboards more tidy and soomth.

2. Features and Characteristics

Due to the continuous rotation of the drum when the rotary die cutting machine works, the production efficiency is the highest among all kinds of die cutting machines. But the die cutting plate needs to be curved to form curved surface. The plate making is rather troublesome, and the cost is relatively high. It is technically difficult. Therefore, the circular die cutting machine is often used in mass production. The die cutting method of circular die cutting machine is generally divided into two types: hard cutting and soft cutting.

Hard cutting refers to the rigid contact between the cutter and the pressure roller when the die is cut, so the die cutter is easier to wear. The soft cutting method is to cover a layer of engineering plastic on the surface of the pressure drum.

When die cutting, the cutting tool can have a certain cut in. This can protect the cutter and guarantee the complete cut off, but the plastic layer needs to be replaced regularly.

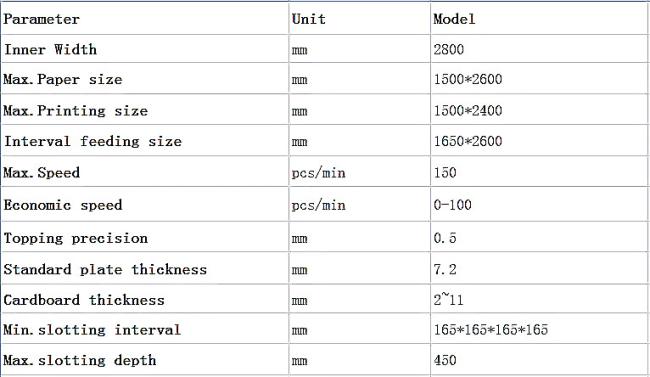

3.Technical Parameters
