180m/Min 200mm Nc Corrugated Slitter Machine
Nc Corrugated Slitter Machine Slitter Cutter Machine Thin Blade Creasing
| Model | SMBD-ANC-2750 | SMBD-ANC-3250 | |
| No.s of slitting scoring | 4/6 5/8 6/10 | ||
| Max.production speed | 180m/min | ||
| Max.feeding width | The Max.slitting between the two blades:2250mm | The Max.slitting between the two blades:2750mm | |
| Max.slitting width | 2600mm | 3100mm | |
| Min.slitting width | 200mm | 200mm | |
| Min.feeding length | 200mm |
200mm |
|
| Min.scoring distance |
40*135mm
|
40*135mm | |
| Gap adjustment | Manual | Manual | |
| Main motor power | 10kw | 12kw | |
| Dimensions L*W*H | 1570*3450*1500mm | 1570*3950*1500mm | |
| Weigh | 2780kg | 2980kg | |
Function and features:

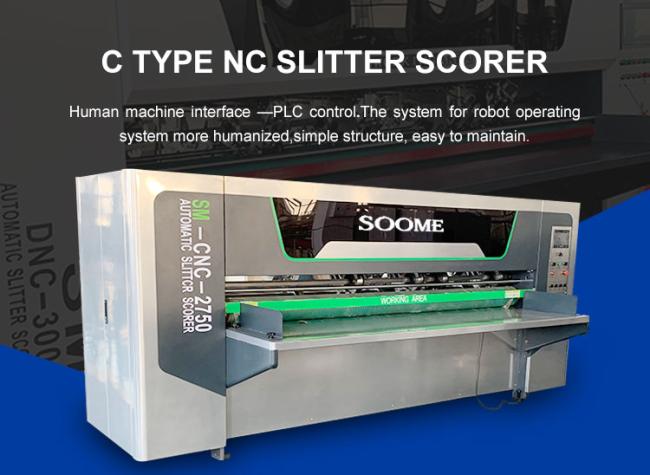

Human machine interface —PLC control,The system for robot operating system more humanized, simple structure, easy to maintain.
1. Manual/auto feeder is available
2. Pre pressing roller,slitting blade and scorer holder are auto adjusted
3. Grinding knife is auto/manual
4. Cardboard thickness and press power are auto adjusted(customer required)
5. Jog for fine-adjusted
6. Auto counter
7. Slitting and press line precision ±0.5mm
8. Human machine interface —PLC control,cutter paper thin blade change order use stand alone stepper motor control,auto change order speed 1-20S,error precision±0.5 mm.
9. Operation humanized.,no technical content,worker use operation use easy.
10. Slitting part:Adopt high quality tungsten steel thin blade,sharp and long work life,slice more tidy,non-pressing and non-burr.
11. The two sides of thin blade are cut separately by rubber wheel press board,surmount not scorer,separate plate,off tracking ,to prevent the bad effect of straight line.
12. This machine can memory 999 group order,don’t need stop machine can change order and manual change order.
Mechanical parts
Taiwan HIWIN linear guide way.
Order changing used HIWIN precision ball screw.
Bearings:Germany FAG,China HRB famous brand.
Synchronous belt:Japan SUBAK.
Adopt raw material tungsten alloy thin blade
| Name | Brand | From |
| Touch screen | WEINVIEW | Taiwan |
| PLC | Panasonnic | Japan |
| Circuit breaker | SHILIN | Taiwan |
| Electric relay | Schneider | France |
| Push-button | ABB | Switzerland |
| Main motor | Yongshun | Guangzhou |
| Actuator | YANKONG | CHINA |
| Driving motor | YANKONG | CHINA |
| Decelerator | YONGKUN | Taiwan |
| Photosensor | OMRON | Japan |
| Proximity switch | OMRON | Japan |
| Air cylinder | Tianao | China |
| Frequency transformer | Mitsubishi | Japan |
| Bearing | RENBEN | HRBIN |
| Blade | 260×158 8 hole | Chengdu Shengong |
| Electromagnetic valve | Tianao | China |
Control system
Slitter and scorer order changed motor:Taiwan Delta AC servo motor(26sets for 6 blades 10 scorers)
Slitter and scorer order changed drive:Taiwan Delta AC servo drive(26sets for 6 blades 10 scorers)
Machine motor:Taiwan TECO frequency motor.
MCGS color touch screen.
Taiwan Delta PLC.
Position test sensor:Korea Autonics
Low voltage apparatus:France Schneider air switch,switch button, AC contactor,etc.
