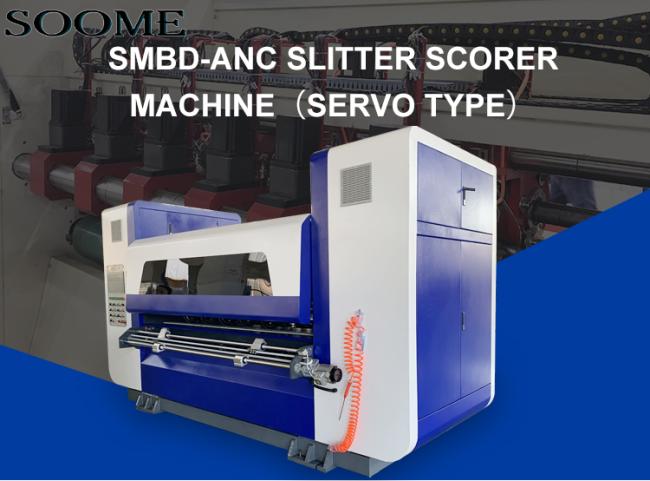

Corrugated Box 2200mm 24kw Thin Blade Slitter Scorer Machine
2200mm Online Slitter Creasing Machine
Nc Slitter Creasing Machine
Cardboard Product Line Slitter Creasing Machine
| Model | Slitter Creasing Machine 1800 | Slitter Creasing Machine 2200 | Slitter Creasing Machine 2500 |
| Efficient width | 1850mm Slitter Creasing Machine | 2250mm Slitter Creasing Machine | 2550mm Slitter Creasing Machine |
| Min. slitting width | 135mm | ||
| Min. creasing width | 0mm | ||
| Blade model | Φ260*158*1.3mm | ||
| Creasing roller model | φ130mm | ||
| Changing order time | 1-3s(servo type) | ||
| Changing order time | 3-8s(frequency type) | ||
| Correction range | ±100mm | ||
| Precision | ± 0.5mm | ||
| QTY of blade/scorer | 5/8 | 6/10 | 7/12 |
| Power(pre-creasing) | 20kw | 24kw | 25kw |
| Power(normal type) | 16kw | 20kw | 21kw |
| Boundary dimension (pre-creasing type) |
3840*2100*2450mm | 4240*2100*2450mm | 4540*2100*2450mm |
| Boundary dimension (normal type) |
3840*1720*2450mm | 4240*1720*2450mm | 4540*1720*2450mm |
| Depth of creasing | 12mm | ||
| Design speed | 150/200/250 m/min | ||
Use for corrugated cardboard product line, for cardboard Slitter Creasing Machine
Use for pizza fruit vegetables ect boxes making Slitter Creasing Machine
Use for paperboard Slitter Creasing Machine
1. High quality industry computer and high performance PLC make up the CNC system Slitter Creasing Machine.
2. Adopt high precision linear guide way, grinding ball screw driving, can assure the slitting and creasing precision within ±0.5mm Slitter Creasing Machine.
3. The convex flattening adopts dynamic optical axis, full-plate printing without drag marks Slitter Creasing Machine .
4. The blade and scorer of this machine is driven by servo, and can be adjusted independently to reduce errors Slitter Creasing Machine.
5. Single screw structure, less zero return origin, simple maintenance, small error Slitter Creasing Machine.
6. The machine has compact structure, small vibration and long service life Slitter Creasing Machine.
7. Automatically track the speed of production line to ensure synchronization with it. It can be connected with production management system and has strong compatibility Slitter Creasing Machine.
8. Individual sealed electrical cabinet,dust-free,constant temperature and humidity ensure longer life Slitter Creasing Machine.
9. Individual step motor and controller on each slitter and scorer sets,quick and accurate order change Slitter Creasing Machine.
10. Grinding knife is computer controlled automatic or manual grinding knife, passive grinding knife, lightweight structure, easy maintenance Slitter Creasing Machine Slitter Creasing Machine.
11. Slitters and scorers are inverter controlled,speed synchronizes with board speed Slitter Creasing Machine.
12. There are three types of scorers. Front row: Male-to-flat/ Pre-score; Back row: Male-to-female Slitter Creasing Machine.
`
