Adjustment Handle 45mm Corrugated Board Partition Machine

Machine operation:

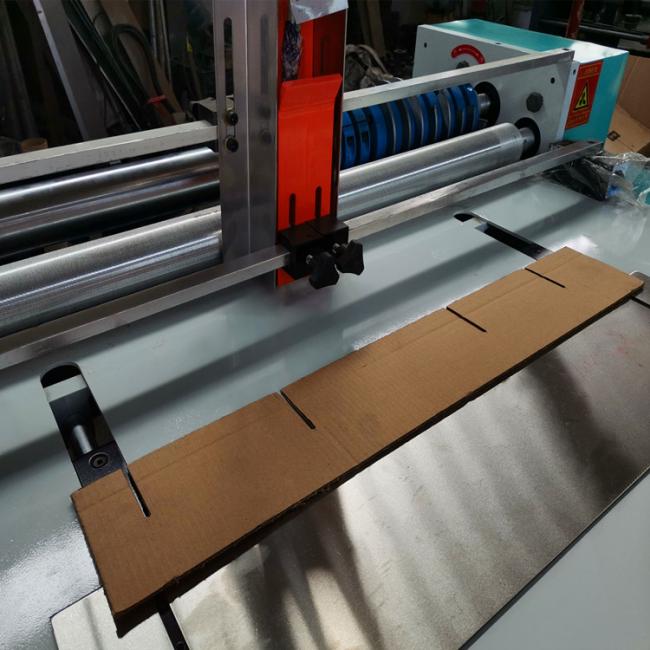

Choose the corrugated paperboard which you want to process, adjust the side feeding baffle . Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .

When the length of paperboard is big , can move the front feeding baffle right or left. Adjustment method : loose the screws in circle of below picture, move the two front feeding baffles , adjust the front feeding baffles to the suitable positions according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .

 Adjust the back feeding baffle , adjustment method : loose the screws in circle of below picture , move the two back feeding baffles forwards or backwards , adjust the suitable positions according to the width of paperboard , after finishing adjustment , tight the screw and fix the baffles .

 Adjust the suction range of feeding table : first put one piece of paperboard on the feeding table , rotate the belt wheel which is with yellow circle in Picture Left , check the walking range of the pushing plate  . Ensure that the distance between the pushing plate and the paperboard is 2mm when the pushing plate move the extreme edge of machine , then it can push the paperboard and make it feed forwards. If need to adjust the position of pushing plate , loose the screws which are circled in Picture Right , find the suitable position , and fix the pushing plate .

Technical index:

Machine maintenance:

Regular check the bearings of machine and clean once every half a year to one year. The other connection parts , need to add the engine oil every half a year .

Before start the machine , check if there is the impurity inside , if there is some parts worn or broken , after checking and no abnormity , then start the machine . The machine should keep clean and tidy in long time .

 Machine Warranty & After-sale Service

This machine has one year warranty for whole structure , not including the knives , rubber roller etc. easy-wear parts . In warranty period , except the easy-wear parts and the damage which is caused by wrong operation , if there is the problem with electric elements , gears , bearing etc. structure parts , we will provide the replaced parts for free .

Beyond the warranty period, if there is parts damaged or broken, we will get paid to provide the replaced part.

For all the operation , maintenance etc. problems in production , our company will provide the technical solution and help to our customer for free
