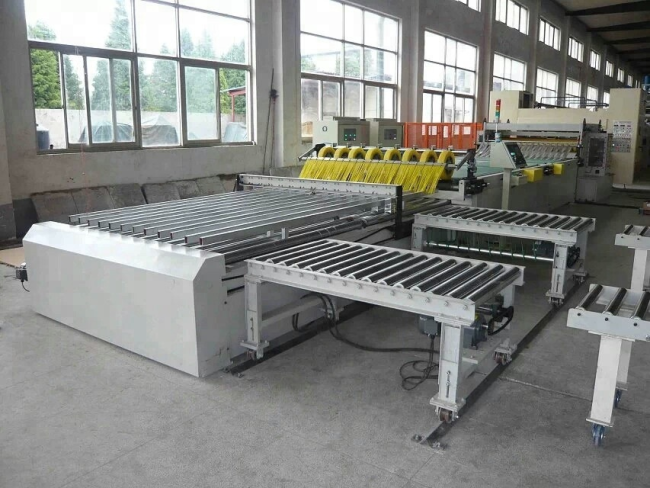

120pcs/Min Production Carton Boards Belt Conveying And Stacking Machine

1. Summarize

The automatic carton boards belt conveying and stacking machine smoothly conveys and stacks the cardboard output from the cross-cutting machine, and carton boards belt conveying and stacking machine smoothly transfers the cardboard output from the cross-cutting machine, stacks neatly, and discharges the paper horizontally;

Carton boards belt conveying and stacking machine three-section flat belt cardboard conveying, frequency conversion motor, frequency conversion speed control, computer controlled, stable conveying and energy saving; carton boards belt conveying and stacking machine for cardboard conveying and production line speed are automatically synchronized, and the speed is automatically carton boards belt conveying and stacking machine adjusted to ensure smooth and reliable action when changing stacks and orders; carton boards belt conveying and stacking machine hanging basket stacking, AC servo motor, AC servo control.

2. Features and Characteristics

1). Carton boards belt conveying and stacking machine control unit of high performance industrial PLC and can be connected with the whole management system of the production line.
2). Carton boards belt conveying and stacking machine converter motor to control the conveying roller, the speed of the carton boards belt conveying and stacking machine can automatically get in line with the production line, so as to save power and
improve efficiency.
3). Carton boards belt conveying and stacking machine independent drive is equipped for each section of belt to sort, stack, and count automatically under the situation of different speed, different length cardboard.
4). Transverse ejection of the carton boards belt conveying and stacking machine apply module assembling belt or flat belt, steady operation, low noisy to make sure the stacking board not falling.
5). Carton boards belt conveying and stacking machine AC servo control the lifting and down of the hanging basket. The back baffle can be adjusted automatically for carton boards belt conveying and stacking machine to meet different specification cardboard, stacking neatly,operation steadily, safely, reliable.
6). All conveying belt, conveying rollers are all with electroplating, slinky and durable.
7). Maximum stacking height: 1600mm.

3.Technical Parameters
