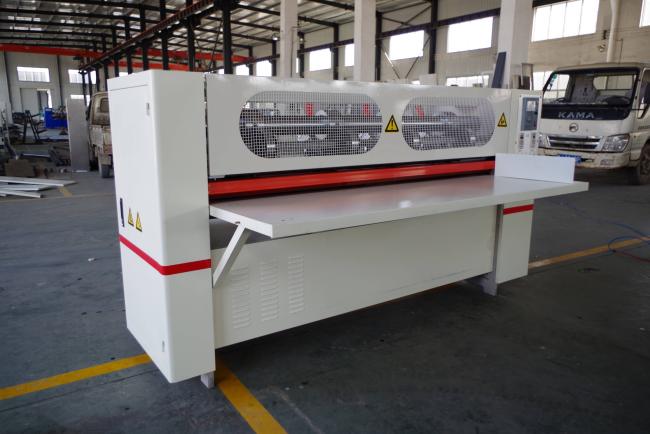

120mm Min Slitting Width Manual Adjustment Thin Blade Slitter Scorer
120mm Min Slitting Width Manual Adjustment Thin Blade Slitter Scorer
1. Summarize
120mm Min Slitting Width Manual Adjustment Thin Blade Slitter Scorer used for slitting corrugated paperboard, adopting high quality tungsten steel blades, sharp and long working-life, slicing tidyly. 5 points scoring of the 120mm Min Slitting Width Manual Adjustment Thin Blade Slitter Scorer, scoring distance in-phase adjust, blazonry and easy to bend 2-10mm thickness corrugated paperboard. Minimum the length of feeding paperboard is 260mm.
2. Features and Functions
1) Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
2) Grinding part: adopt automatic and manual two kinds pneumatic grinding type, it could be grinding when working, improve work
efficiency.
3) Press the thread first, then slit, and finally the paper-feeding rubber shaft.
4) Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
3. Technical Parameters
| 型号 | Model | 2000 | 2200 | 2500 | 2800 | 3000 |
| 有效分切 | Max slitting size(mm) | 1800 | 2000 | 2300 | 2600 | 2800 |
| 最小分切 | Min slitting size(mm) | 120 | ||||
| 最小分切长度 | Min slitting length(mm) | 400 | ||||
| 最小压线尺寸 | Min scorer width(mm) | 30 | ||||
| 压痕高度 | Scorer height(mm) | 0-12 | ||||
| 刀片规格 | Blade size(mm) | 190*122 | ||||
| 刀线配置 | Blade/scorer | 4/6 ,5/8 ,6/10,7/12,8/14 | ||||
|
尺寸 (长宽高) |
Machine dimension (LWH) |
2630*700* 1350 |
2830*700* 1350 |
3130*700* 1350 |
3430*700 *1350 |
3630*700* 1350 |
| 功率 | Power | 4 | 4 | 5.5 | 5.5 | 7.5 |
