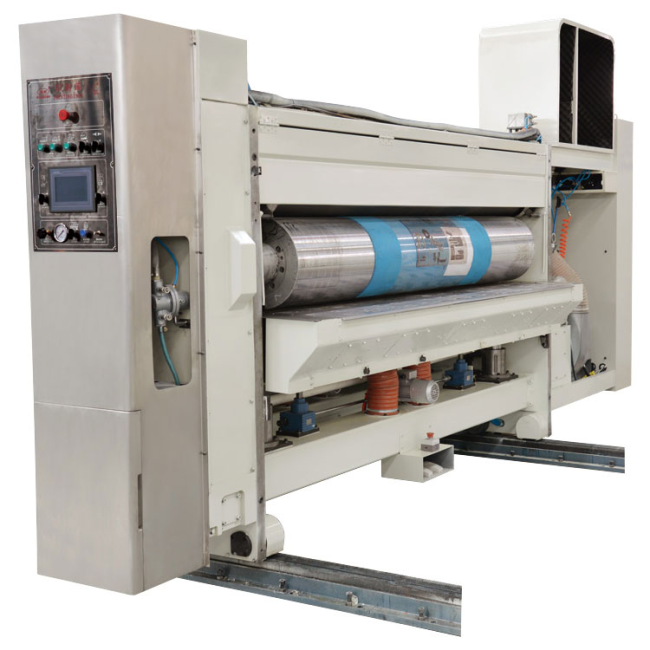

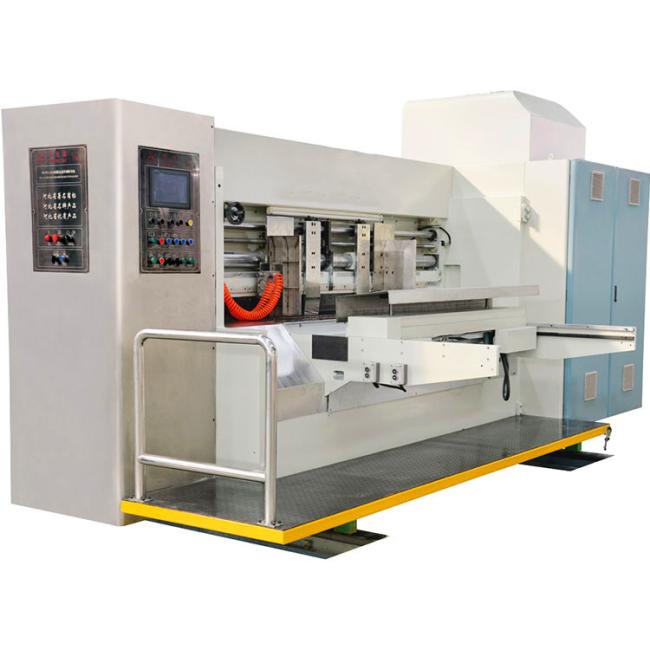

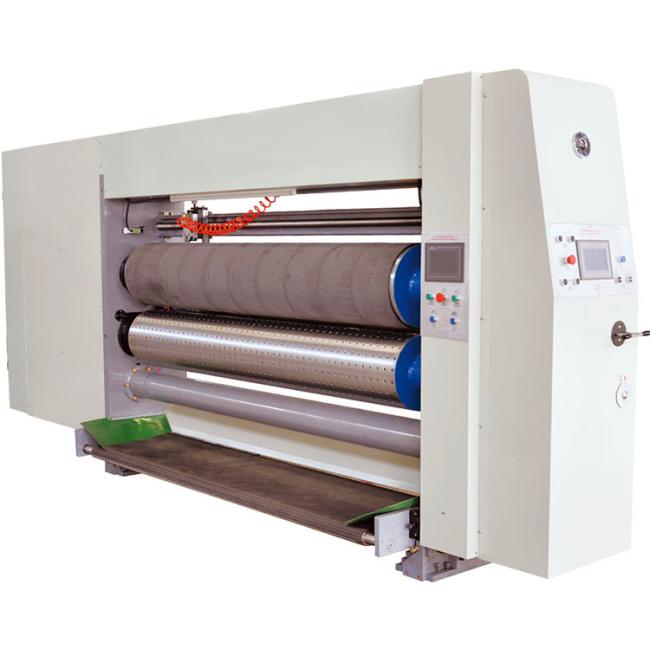

1224 Common Model Making Corrugated Carton Printing Machine CE
1224 common model corrugated carton making printing machine
Function and characteristic:
carton box making machine prices YKW 1270 series corrugated carton box printing machine is used for high graphic corrugated carton printing, adopt sun lead edge feeder, sun doctor blade , ceramic roller, keep the quality highest, also bright oil and uv coating, slotting, ratory die cutting. keep the speed from 80-150pcs/min, big production per day.
Material:
Wallboard thickness: 50mm
Gears thickness: 50~60mm
Inner housing thickness: 6mm steel plate
Outer housing thickness: 2mm
Common gears material: 40# chrome, hardness 50~55
45# steel, with quenching, hardness 45~50
Our gears material: 20# chrome, hardness 60~65. With Mn and Ti, good toughness
Technical index:
| Type | Unit | SMYS-QY-2600 |
| Plate roller diameter | mm | ￠380 |
| Plate roller length | mm | 2500 |
| Inner width of machine | mm | 2600 |
| Speed | pcs／min | 240 |
| Max printing area | mm | 1200×2200 |
| Max feeding paper size | mm | 1200×2400 |
| Feeding paper by skip | mm | 1280x2400 |
| Min feeding paper size | mm | 300×550 |
| Board thickness | mm | 2－11 |
| Print plate thickness | mm | 7.2 |
