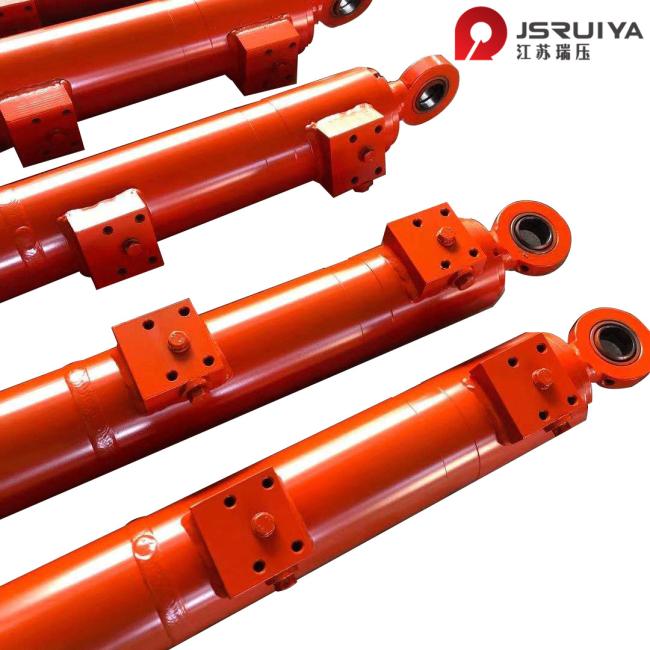

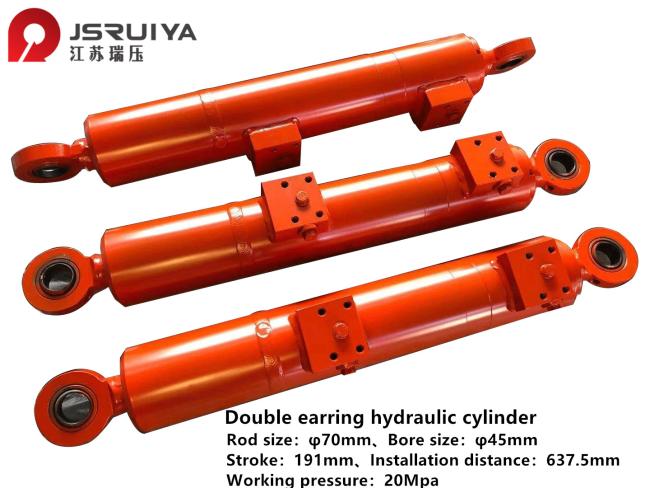

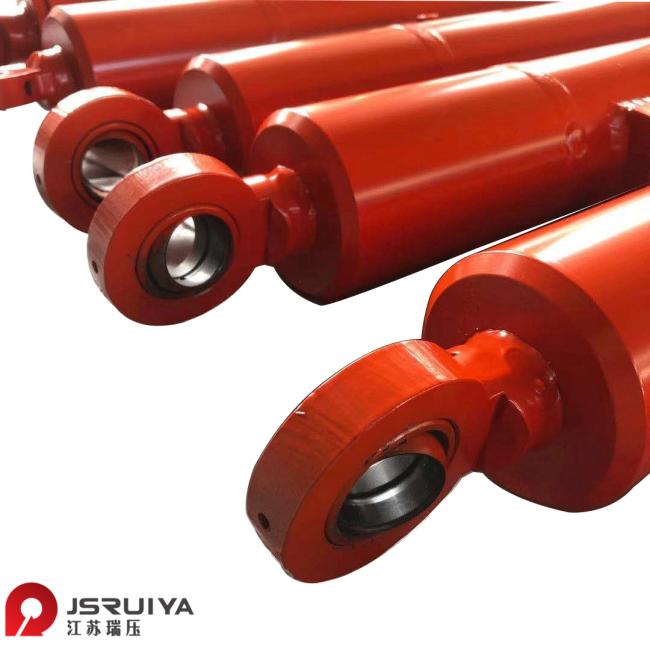

Custom Double Earrings Type High Pressure Hydraulic Cylinder
JSRUIYA Hydraulic Machinery focus on manufacturing all kinds of cylinders used for Machinery, Equipment, Mining, Truck, Construction Machinery etc. We also can design or do OEM in accordance with client's special requirements. We have our own professional design team , advanced production equipment, and strict quality control system to improve the reliability, safety and economy of products. In order to create real benefit for clients, JSRUIYA Hydraulic Machinery will offer a full set of services, such as consulting solutions, products installation, technical support, etc.
High Pressure Hydraulic Truck Cylinder Double Acting Hydraulic Ram
Custom Hydraulic cylinders for mining machinery
Main Features
| Product Name | Factory Design Customized Hydraulic Cylinder |
| Rod Size | 18 mm - 2000 mm |
| Stroke | 100 mm - 1200 mm |
| Tipping Weight | 1-100Ton |
| Working Pressure | 2500-8000psi |
| Material | Carbon Steel/Cast Iron /Aluminum/Hard chrome plated Alloy Steel |
| Barrel/Tube | 1. Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc. |
| 2. Technology: cold drawn ,hot rolled,forged | |
| 3. Surface Roughness: R0.16-0.32 | |
| 4. Choose by different working condition and requirements. | |
| Piston rod | 1. Material: SAE1045(45#),35CrMo,42CrMo4,etc. |
| 2. Technology: Quenched and tempered | |
| 3. Surface treatment: chrome plated, nickel-chromium plated, nitriding, nitrocarburizing | |
| Seal kits | 1. Hallite, NOK, SKF, Parker, Hercules,Trelleborg,China made,Taiwan made |
| 2. Choose by different working condition and requirements. | |
| Hydraulic Cylinder Types | Single Acting Hydraulic Cylinder,Double Acting Hydraulic Cylinder,Telescopic Hydraulic Cylinder,Welded Hydraulic Cylinder,Tie-Rod Hydraulic Cylinder,Bolted Hydraulic Cylinder,Re-phasing Systems Hydraulic Cylinder,Double Rod End Hydraulic Cylinder |
| Mounting Style | Earrings, flange, foot mounting, trunnion, cross tube, etc |
| Test | Static balance test |
| Surface treatment | Painting/sand blasting/oiled,Follow customers' requirement. |
| Application | Excavator boom arm bucket,Construction,Machinery,Agricultural Machine,Lift gate & Snow plow,Trash Compactors,etc |
