Custom Made Agriculture Tractor Single Acting Lifting Hydraulic Cylinder
Price:
Negotiation
MOQ:
1PCS
Delivery Time:
15-45 Days
Brand:
JSRUIYA
Product Description
Customized Single Acting Lifting Hydraulic Cylinder for Agriculture Tractor
With decades of experience, JSRUIYA is able to design and manufacture hydraulic cylinders on specific customer request.
JSRUIYA produces hydraulic cylinders according to its own standards and customized according to customer requests with bores ranging from 25 mm up to over 300 mm and strokes of over 6000 mm. A wide range of applications are thus covered.

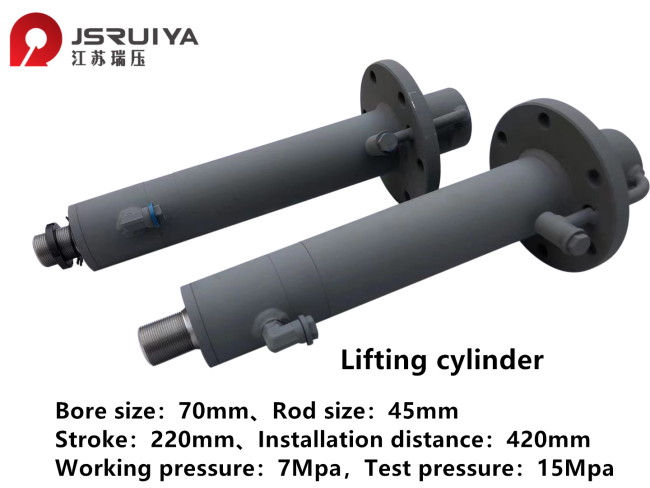

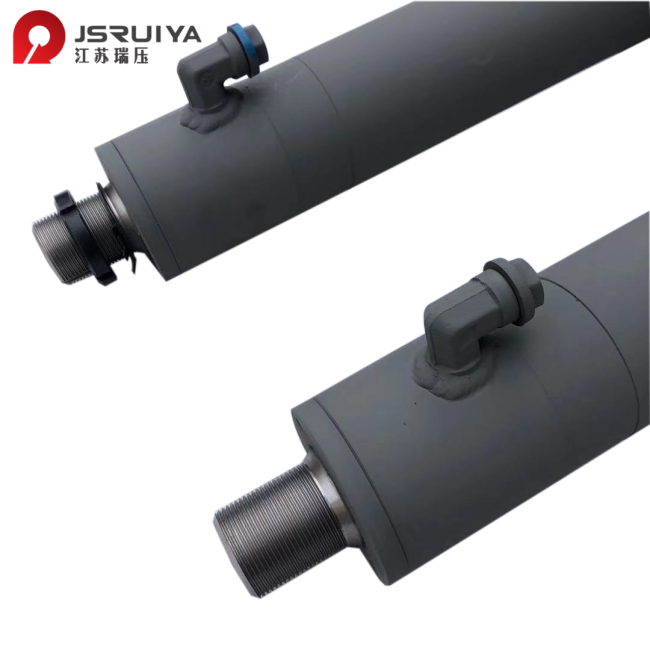

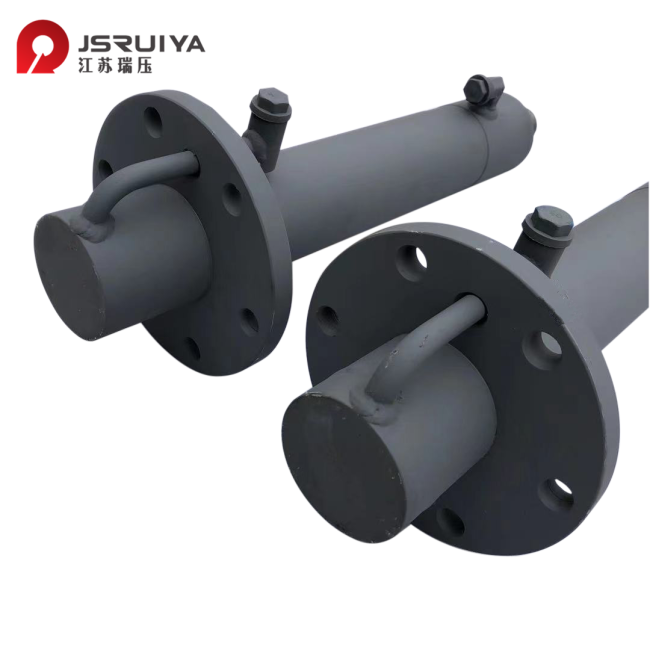

Weld Lifting Hydraulic Cylinder for Tractor Machine
Custom Hydraulic cylinders for tractor machinery
Main Features
| Product Name | Factory Design Customized Hydraulic Cylinder |
| Rod Size | 18 mm - 2000 mm |
| Stroke | 100 mm - 1200 mm |
| Tipping Weight | 1-100Ton |
| Working Pressure | 2500-8000psi |
| Material | Carbon Steel/Cast Iron /Aluminum/Hard chrome plated Alloy Steel |
| Barrel/Tube | 1. Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc. |
| 2. Technology: cold drawn ,hot rolled,forged | |
| 3. Surface Roughness: R0.16-0.32 | |
| 4. Choose by different working condition and requirements. | |
| Piston rod | 1. Material: SAE1045(45#),35CrMo,42CrMo4,etc. |
| 2. Technology: Quenched and tempered | |
| 3. Surface treatment: chrome plated, nickel-chromium plated, nitriding, nitrocarburizing | |
| Seal kits | 1. Hallite, NOK, SKF, Parker, Hercules,Trelleborg,China made,Taiwan made |
| 2. Choose by different working condition and requirements. | |
| Hydraulic Cylinder Types | Single Acting Hydraulic Cylinder,Double Acting Hydraulic Cylinder,Telescopic Hydraulic Cylinder,Welded Hydraulic Cylinder,Tie-Rod Hydraulic Cylinder,Bolted Hydraulic Cylinder,Re-phasing Systems Hydraulic Cylinder,Double Rod End Hydraulic Cylinder |
| Mounting Style | Earrings, flange, foot mounting, trunnion, cross tube, etc |
| Test | Static balance test |
| Surface treatment | Painting/sand blasting/oiled,Follow customers' requirement. |
| Application | Excavator boom arm bucket,Construction,Machinery,Agricultural Machine,Lift gate & Snow plow,Trash Compactors,etc |
