OEM Mining Forestry Equipment Customized Hydraulic Cylinders
OEM Customized Made Mining Forestry Equipment hydraulic cylinder
JSRUIYA is a Chinese based manufacturer of engineered hydraulic cylinders. Our manufacturing facilities are certified to the ISO 9001 standard. We are also an approved supplier to many large OEM equipment manufacturers in the mobile industry. Serving North America and beyond, we offer high quality products at very affordable pricing. We take pride in our flexible delivery programs and offer a competitive warranty, be assured, we stand by our product.
At JSRUIYA Hydraulic, we pride ourselves on the diversity of our services, and we strive to meet the needs of clients across industries. Our stock hydraulic cylinders are built to last and subjected to rigorous quality testing, ensuring reliable performance over their entire working lives. Our custom design and repair services extend these offerings to support clients with highly individual needs.
Technical Parameter:
| Item | Custom Piston Welded Hydraulic Cylinder |
| Single Acting/Double Acting | Single Acting |
| Duty Rating | Heavy Duty |
| Bore Dia. | 40mm |
| Stroke Length | 50mm |
| Rod Dia | 20mm |
| Installation Distance: | 350mm |
| Working Pressure | 7Mpa |
| Test Pressure | 15Mpa |
| Piston Material | Ductile Iron |
| Tubes | Precision Honed Steel |
| Tie Rods | High Tensile |
| Finish | Gray |

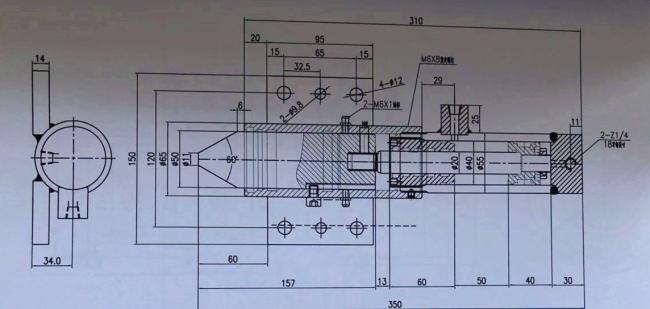

We can manufacture according to the detailed drawings you offer. If you don’t have drawings, you can tell us your specific requirements. Our engineers will design production plans to meet your exact expectations.
