Customized Tie Rod Single Stage Hydraulic Cylinders
Price:
Negotiation
MOQ:
1PCS
Delivery Time:
15-45 Days
Brand:
JSRUIYA
Product Description

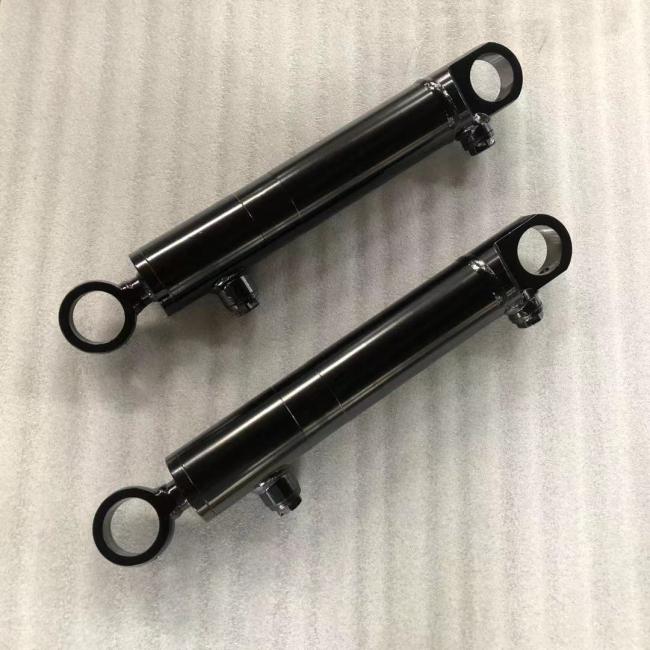

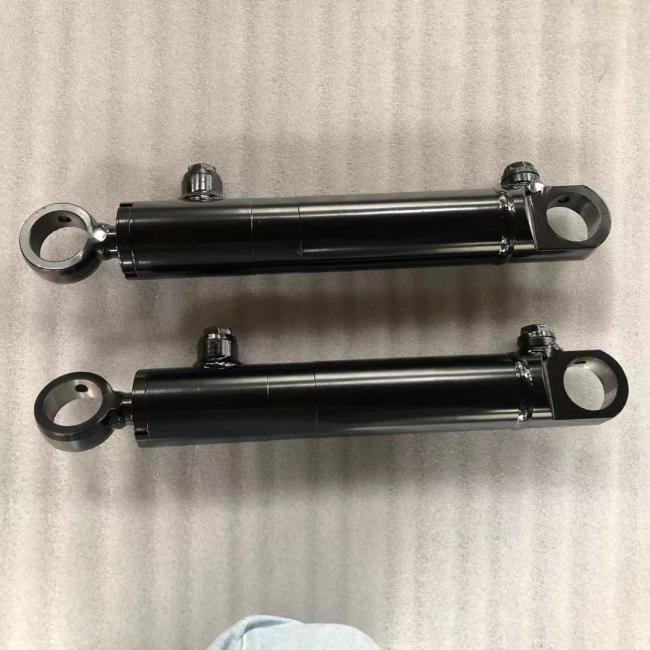

Customized tie-rod single acting hydraulic cylinders for Agriculture Machinery tractors
JSRUIYA Hydraulic manufactures hydraulic cylinders according to the requirements of our customers (samples and small batches of special cylinders included), as well as a wide range of hydraulic cylinders with standard dimensions. The line of products that we offer includes single-acting and double-acting hydraulic cylinders of different lengths, diameters, and applications, telescopic hydraulic cylinders, large-scale hydraulic cylinder, high-pressure cylinders, as well as any other cylinders produced according to the requirements of our customer.
Before purchase, pls contact me , we can discuss the cylinder details .
Hydraulic Cylinder Technical Parameter
| 1.Double-Acting/ Single-acting |
| 2.Superior Quality Chrome Plated & Polished Rod |
| 3.Honed & Finished Steel Tube |
| 4.Top SAE Ports Standard |
| 5.Top Quality Seals |
| 6.1 Year Warranty |
| 7.Standard Color is BLACK. |
| 8.Color: According to your requirements |
| Designed For | Single-acting,double-acting |
| Stage | 3~5stage cylinder |
| Max inner tube | 170mm,180mm,195mm,200mm,210mm,etc |
| Mounting distance | 325mm/345mm/425mm or as cutstomers’requirements |
| Working Pressure | 12Mpa-35Mpa |
| Stroke | 100mm-2000mm |
| Tipping Weight | 1-68Ton |
| Seal Type | Parker,NOK, BUSAK SHAMBAN or as customer's requirement |
| Piston Rod | Chrome or nickel plated,ground & polished piston rod |
| Tube | High tensile cold drawn tube, precision honed for extended seal life |
Hydraulic cylinder Chrome Plated Shaft
| Size | 100mm |
| Length | 2000mm |
| Tolerance | ISO f7 |
| Chrome Thickness | 20~30micron |
| Hardness of The Chrome Layer | 45~50HRC |
| Roughness | Ra0.4micron |
Or you can offer us your sketch diagram or photos so that we could understand you exactly meaning, help us avoid mistakes.
And if you have samples, we can manufacture according to your samples after sending to us.
Welcome to our factory if you have any time.
Your satisfaction is our biggest motivation.
Now, you can contact with us for any question or inquiry
