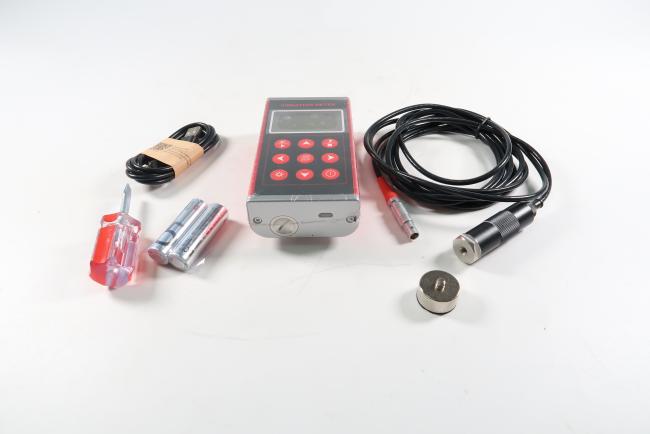

TMV120 Handheld Vibration Meter LCD With Backlight Instrument For Vibration Detection And Maintenance
Product Description:
TMV120 portable vibration meter is suitable for routine vibration measurement, especially in reciprocating machinery vibration measurements. It can not only measure the vibration acceleration, velocity or displacement, but also for rotational speed measuring. In addition, It can measure the frequency or rotation rate of vibration.
This product use optimized-filtering method to ensure stable and accurate measurement indication in multi-interference measurements environment. And the product of smart appearance, white backlit display is easy to use in complex environment.
Features:
- All English display, easy to operate. White backlight for better operation in the dark.
- It is suitable for acceleration Peak data, velocity RMS data and Displacement Peak-Peak data measurement.
- The frequency or rotation rate can be measured
- Storage up to 100 points (10 data per point), a total of 1000 data and time.
- Warning limit can be preset. Alarm when the measuring value exceeds the warning limit.
- Provid high-performance rechargeable Li battery and charging control circuit inside with extra-long working and standby time. Battery sign, display the current remaining capacity.
Technical Parameters:
| Testing range |
Acce: 0.1 m/s2 ~ 199.9 m/s2(peak) Velo: 0.01 cm /s ~ 19.99cm /s(RMS) Disp: 0.001mm ~ 1.999mm(peak-peak) |
| Freq range |
Acce(LO): 10Hz ~ 1kHz Acce(HI): 1kHz ~ 10kHz Velo: 10Hz ~ 1kHz Disp: 10Hz ~ 500Hz |
| Frequency measurement | 3Hz～10KHz |
| rotation rate measurement | 180rpm～60000rpm |
| Tolerance | ±5% |
| Temp | 0℃ ~ 40℃ |
| Display | LCD,128×64 pixels with LED backlight |
| Data memory | 100×10 |
| Data interface | USB |
| Limit alarm | Yes(Beep) |
| Battery | AA×2 |
| Continuous working time | About 100h(without backlight) |
| Overall dimensions | 126×66×31mm |
| Weight | 228g |
Applications:
The TMTeck TMV120 also finds application in quality control and product testing environments. Manufacturers use this handheld vibration measurement tool to evaluate the vibration characteristics of their products during the design and production stages. This ensures that products meet the required vibration tolerance levels and perform optimally in real-world conditions.
With a battery life of up to 12 hours of continuous use, the TMV120 is well-suited for long inspection sessions in the field or on-site locations where power sources may be limited. Its compact size and ease of use make it suitable for technicians working in confined spaces or remote areas. Whether you are conducting routine maintenance checks, structural assessments, or product testing, the TMTeck TMV120 handheld vibration meter delivers precise and reliable digital vibration measurements to support your operational needs.
