Food Powder Grinder Machine Stainless Steel Barley Kernel Grinder
Price:
$2,500.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
BrightSail
Product Description
2023 Stainless Steel Barley Kernel Grinder Machine Food Powder Grinder Machine Brightsail
Product Description
Our BSU Barley Kernel Grinder Machine is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc. For example, spice, rice, wheat, sugar, salt, cassava, moringa leaves...etc.
The whole part of our BSU Barley Kernel Grinder Machine is made of stainless steel. The inner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the state standard and the GMP requirements.
The whole part of our BSU Barley Kernel Grinder Machine is made of stainless steel. The inner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the state standard and the GMP requirements.

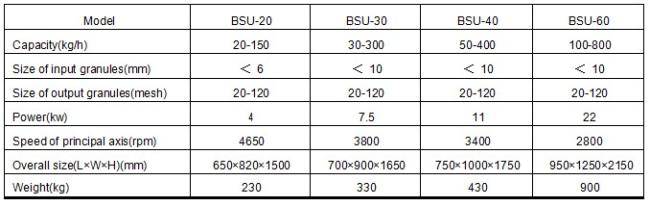

Specification
Detailed Image
Working method:
The main shaft is provided with a movable groove plate, and the groove plate is provided with three movable ring gears. Install a fixed slotted disc on the door, which is equipped with two fixed ring gears with steel teeth. The movable gear on the movable groove plate intersects the fixed ring gear. When the main shaft rotates at high speed, the movable groove plate rotates at the same time, throwing the material into the gap of the hammer. Therefore, the crushing effect is achieved through the combined effects of mutual impact, cutting and abrasion between the material and the gear or between the material itself. After the finished product is sieved by a sieving machine, it is discharged from the crushing chamber to a collection bag, and the coarse particles continue to be crushed.
The main shaft is provided with a movable groove plate, and the groove plate is provided with three movable ring gears. Install a fixed slotted disc on the door, which is equipped with two fixed ring gears with steel teeth. The movable gear on the movable groove plate intersects the fixed ring gear. When the main shaft rotates at high speed, the movable groove plate rotates at the same time, throwing the material into the gap of the hammer. Therefore, the crushing effect is achieved through the combined effects of mutual impact, cutting and abrasion between the material and the gear or between the material itself. After the finished product is sieved by a sieving machine, it is discharged from the crushing chamber to a collection bag, and the coarse particles continue to be crushed.
Main features:
1) Simple structure,easy in installation and maintation.
2) Adopting advanced world famous brand components in bearing,electric parts and operation parts.
3) Running in a high automatization and intellectualization,whole sealed design,no pollution.
4) You can get different powder particle size by changing the screen/sieve inside the mill chamber.
1) Simple structure,easy in installation and maintation.
2) Adopting advanced world famous brand components in bearing,electric parts and operation parts.
3) Running in a high automatization and intellectualization,whole sealed design,no pollution.
4) You can get different powder particle size by changing the screen/sieve inside the mill chamber.
Company Profile
Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as Barley Kernel Grinder Machine, chemical powder mixer machine, detergent powder mixing machine... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
Buyer feedback
Our Services
Packing & Delivery
*Usually small machine(BSU roots powder making machine) will be packed in the wooden case, and we can also pack it according to customers special request.
*If machine is big(BSU roots powder making machine), we will fix the machine inside container with steel wires and nails.
Machine won't move inside the container.
*If machine is big(BSU roots powder making machine), we will fix the machine inside container with steel wires and nails.
Machine won't move inside the container.
