Spice Cryogenic Pin Mill Grinder 120mesh Low Temperature

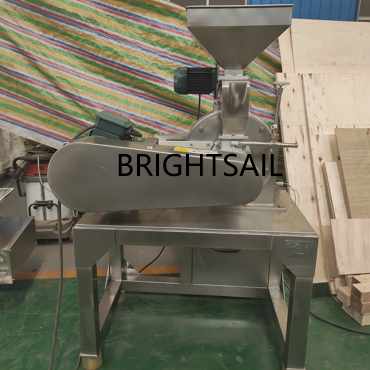

Low Temperature Spice Cryogenic Pin Mill Grinder
Working principle of spice cryogenic pin mill grinder:
BSZ series spice cryogenic pin mill grinder has grinding pins inside, the materials would be fed into the grinder from the hopper then get crushed in the mill chamber. In the grinding process, the liquid nitrogen can be sent into the grinder through the connecting pipe. So in the production, the temperature is very low.
The features of the spice cryogenic pin mill:
1)There is inverter device inside, you can adjust the inverter to change the output size.
2)Simple machine structure, very easy to operate
3)Low working temperature
Wide Application:
Technical data:
| Model | BSZ-350 | BSZ-450 | BSZ-550 |
| Capacity(kg/h) | 60-200 | 150-500 | 230-700 |
| Feed size(mm) | <15 | <15 | <15 |
| Output size(mesh) | 40-1000 | 40-1000 | 40-1000 |
| Cavity disc crush motor(kw) | 18.5 | 22 | 37 |
| Door disc crush motor(kw) | 15 | 18.5 | 30 |
| Feed screw motor(kw) | 0.37 | 0.55 | 0.75 |
| Speed(rpm) | 12000 | 9600 | 8400 |
FAQ:
Q: What will be the payment way?
A: Usually, we accept T/T, and sometimes, we can also accept LC, and credit card.
Q: Can the machine size be customized?
A: Yes, maybe we can. You shall tell us the room size of your factory, so we can adjust the design to fit in your space, we can try it.
Q: Can the machine’s voltage be customized?
A: Yes, sure. Like 220V,400V, 480V, 600Hz....we can do it.
