SS304 Automatic Internal Scraper Self-Cleaning Filter Housing For Food Industry
Price:
USD4000-15000 PER SET
MOQ:
1 SET
Delivery Time:
20-50 DAYS
Brand:
HUATAO
Product Description

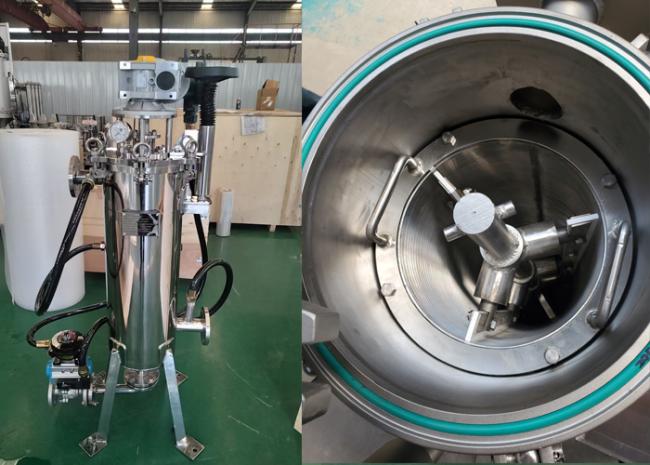

SS304 Automatic Inner Scraper Self-Cleaning Filter
Introduction
Internal scraping self-cleaning filter blends modern technology with simplicity to provide a versatilemethod of filtering your process fluids.
The filter can be set up for fully or semi-automated or manual operation.
Working Principle
Liquid enters the filter body from inlet and flows through the filter element from inside to outside.Impurity is collected on the internal surface of the wedge wire element.The reducer motor drives scraper blade to remove the impurity continously. Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.
The impurity accumulated during rotation is deposited into the bottom of the filter body from where it can be periodically discharged automatically via the drain outlet.
The impurity accumulated during rotation is deposited into the bottom of the filter body from where it can be periodically discharged automatically via the drain outlet.

Technical Parameters
| Filter Model | Filter Inner Dia. | Filter Height | Thickness | Filter Area | Filtration Precision |
| HT-D219 | 250mm | 1000 | 3 | 0.2 | 50microns |
| HT-D273 | 300mm | 1450mm | 4mm | 0.5 | |
| HT-D325 | 350mm | 1600mm | 4mm | 0.6 | |
| HT-D400 | 450mm | 1700mm | 6mm | 0.7 | |
| HT-D450 | 500mm | 1750mm | 6mm | 0.9 | |
| HT-D550 | 600mm | 1850mm | 6mm | 2.0 | |
| HT-D800 | 850mm | 2000mm | 6mm | 2.5 |
Feature
1. High filtration accuracy, the minimum accuracy can reach 20 microns.
2. No disposable consumables are produced, saving consumable costs and environmental protection treatment costs.
3. High degree of automation, no need for manual cleaning, dual control of pressure difference and time, to achieve full automation of cleaning
4. Closed filtration to prevent leakage of hazardous materials, which is conducive to safe and efficient production.
2. No disposable consumables are produced, saving consumable costs and environmental protection treatment costs.
3. High degree of automation, no need for manual cleaning, dual control of pressure difference and time, to achieve full automation of cleaning
4. Closed filtration to prevent leakage of hazardous materials, which is conducive to safe and efficient production.
Application Liquid
wax,kerosene,monomer,polymer,water,citric acid,fermentationliquid,protein,soap,sorbitol,wetendadditive,binder, ink,pigment,pant,
wax,kerosene,monomer,polymer,water,citric acid,fermentationliquid,protein,soap,sorbitol,wetendadditive,binder, ink,pigment,pant,
resin, rubber, ethanol,Chocolate,candy,cooking oil, high temperature oil, Juice,coolant,diesel oil,
