New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
30-35 working days
Brand:
ZONCO
Product Description

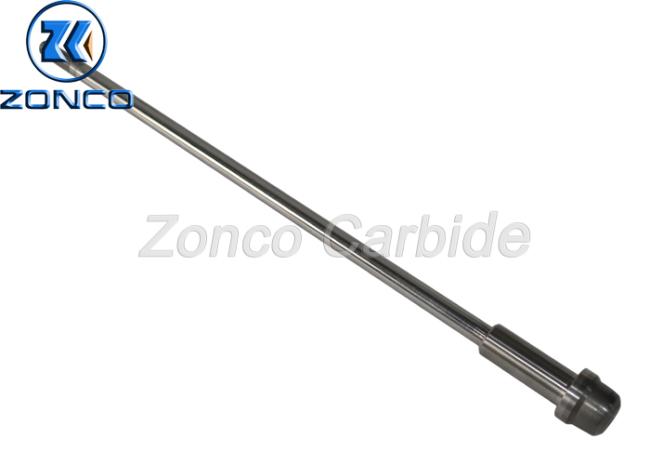

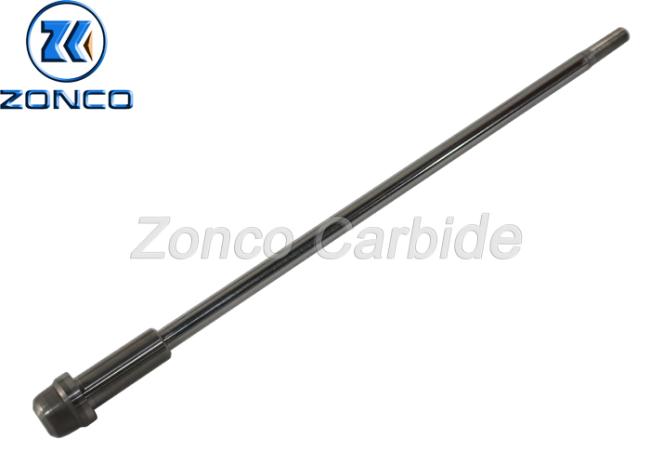

New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
Choke stem and seat are the key parts for adjustable choke valves in wellhead equipment.Assembled with tungsten carbide tips and SS410/316 body.
Specifications
| Size | 1'' and 2'' |
| Material | YG6/YG8 +410 S.S/420 S.S |
| Certificate | Material,size,MPI,UT etc |
| Sample | Can provide sample before form orders |
| Braze way | Silver brazing |
| Delivery time | 35days/1000pcs |
| Package | Carton +wooden cases |

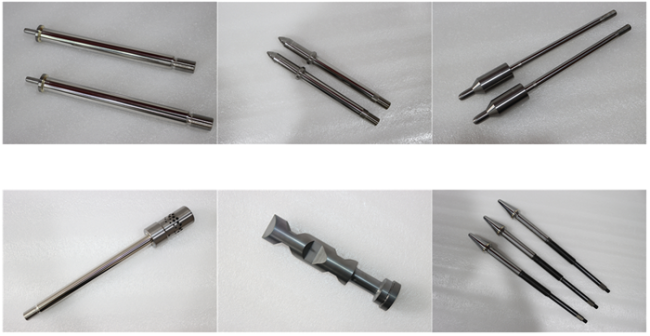

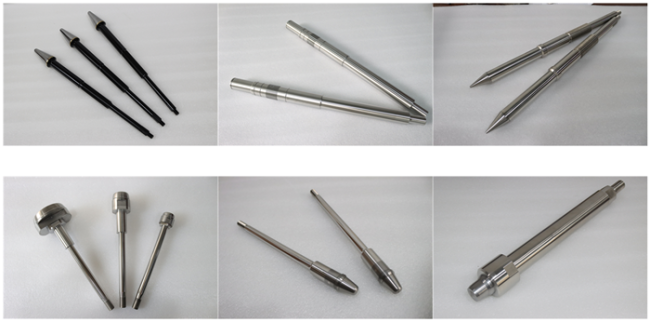

Products show
Our Services
1.OEM grade--Can composit grade according to customer's requirement
2.OEM part--Can product parts according to customer's drawing
3.Service on 24 hours
Our products range
- Tungsten carbide mechanical seal rings
- Tungsten carbide bush and sleeve
- Tungsten carbide valve and seat for fluid controlling
- Choke valve stem
- Choke beans
- Choke stem and seat
- Tungsten carbide thread nozzles
- Tungsten carbide tip for oil well,water well drilling,mining drilling,stone working
- Tungsten carbide teeth for drill bits
- Other tungsten carbide customized products
| Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application | |||||||
| Grade | WC% | Co/Ni % | Physical and mechanical properties | Grain size (μm) | Recommended application | ||
| Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | |||||
| ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability |
| ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts |
| ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure. |
| ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance. |
| ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
| ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for general wear parts, molds, general tools, etc. |
| ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 | Good general performance, suitable for casing and oil nozzle products |
| ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
| ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
| ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
| ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
| ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
| ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
| ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
| ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 | |
