China API Cemented Carbide SS410 Choke Stem For Flow Control System for sale

API Cemented Carbide SS410 Choke Stem For Flow Control System

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: 30-35 working days

Brand: ZONCO

Product Description

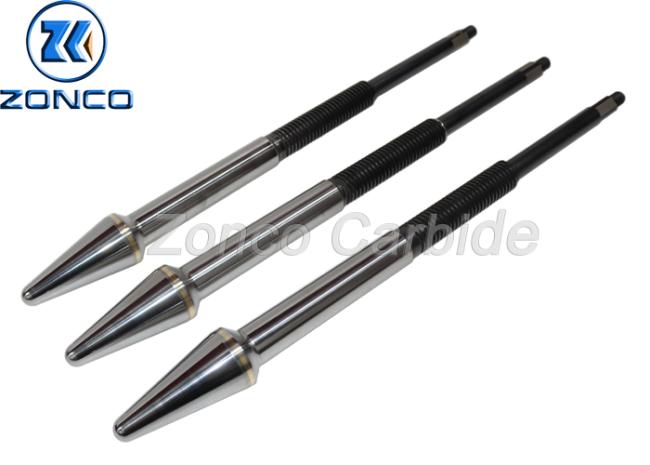

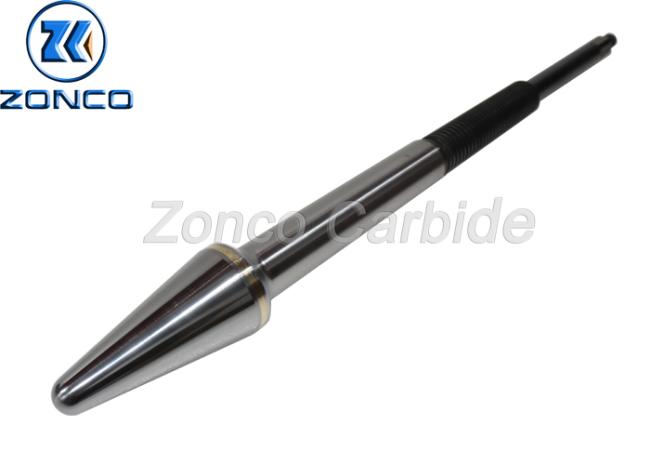

API Valve Parts Cemented Carbide Choke Stem for Flow Control System

Choke stem and seat are the key parts for adjustable choke valves in wellhead equipment.Assembled with tungsten carbide tips and SS410/17-4PH body.

Direction for use

These valve components have high temperature resistance, wear resistance and corrosion resistance It is mainly used for the

sealing of oil pump valves such as sand wells, heavy oil wells, offshore oil wells and high-pressure sulfur-resistant oil wells in

the petroleum industry.

Specifications

Size	1'' and 2''
Material	YG6/YG8 +SS410/17-4PH
Certificate	Material,size,MPI,UT etc
Sample	Can provide sample before form orders
Braze way	Silver brazing
Delivery time	35days/1000pcs
Package	Carton +wooden cases

Products show

Our Services

1.OEM grade--Can composit grade according to customer's requirement

2.OEM part--Can product parts according to customer's drawing

3.Service on 24 hours

Our products range

Tungsten carbide mechanical seal rings
Tungsten carbide bush and sleeve
Tungsten carbide valve and seat for fluid controlling
Choke valve stem
Choke beans
Choke stem and seat
Tungsten carbide thread nozzles
Tungsten carbide tip for oil well,water well drilling,mining drilling,stone working
Tungsten carbide teeth for drill bits
Other tungsten carbide customized products

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade	WC%	Co/Ni %	Physical and mechanical properties			Grain size (μm)	Recommended application
Grade	WC%	Co/Ni %	Density (g/cm3)	TRS (N/mm²)	Hardness (HRA)	Grain size (μm)	Recommended application
ZG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06	94	6	14.8-15.1	2500	90.0	1.2	Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X	94	6	14.8-15.1	2400	91.5	1.0	Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
ZG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2	90	10	14.3-14.6	3800	91.7	0.7	Good general performance, suitable for casing and oil nozzle products
ZG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
ZG15X	85	15	13.8-14.2	4500	89.0	0.7	Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
ZN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
ZN11	89	11	14.0-14.3	2600	88.0	1.2
