Cemented Carbide Tip Choke Stem With SS410 Body

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: 30-35 working days

Brand: ZONCO

Product Description

Tungsten Carbide Cemented Choke Valve Choke Needle Choke Stem For Oil And Gas Industry

Choke stem is the key part for ajustable choke valves in wellhead equipment.Assembled with tungsten carbide tips and SS410/316 body.

Hardened alloy stell stems is widely used in adjustable needle & positive choke assemblies.Stainless steel or stainless steel with tungsten carbide tips for abrasive and sours gas service are available on request.Positive choke assemblies are furnished less flow bean and may be converted to adjustable choke assemblies by replacing the blanking cap assembly and flow bean with the appropriate adjustable bonnet assembly and seat.

Tungsten carbide plug tip in conjunction with solid tungsten carbide cage provides optimum wear resistance in erosive conditions
Carbide wear parts for oil and gas industry,wellhead assembly(eg:multistage choke manifold,products such as small bits,choke bean,core and seat,orifice plate,lagging(long type and short type)
Customized tungsten carbide choke valve stem according to drawings

			Product name
			Choke stem

			Size
			3/4" 1"

			Material
			TC+410SS

			Process
			Sliver brazing

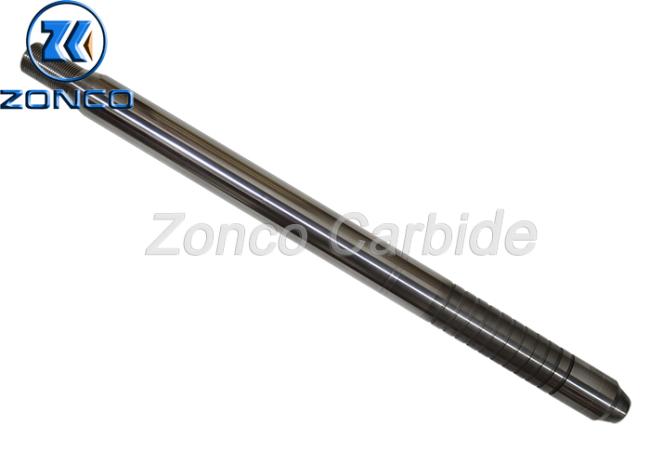

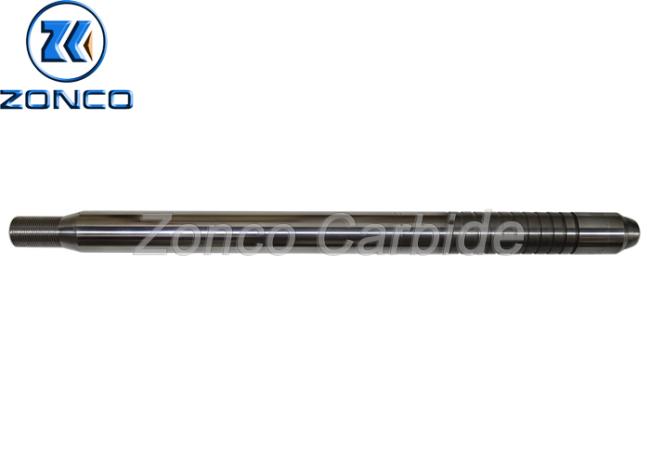

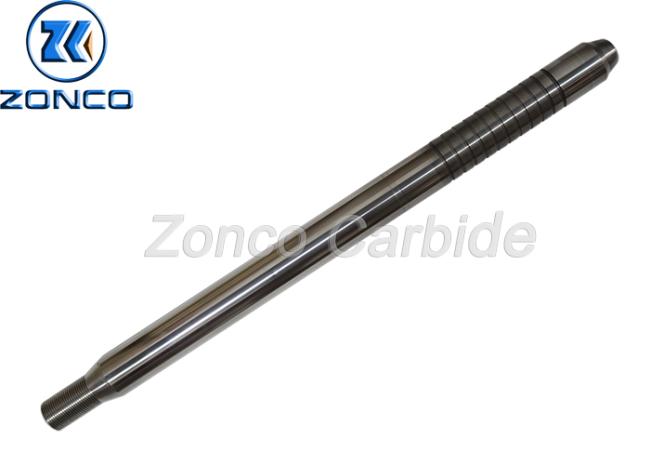

Products show

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade	WC%	Co/Ni %	Physical and mechanical properties			Grain size (μm)	Recommended application
Grade	WC%	Co/Ni %	Density (g/cm3)	TRS (N/mm²)	Hardness (HRA)	Grain size (μm)	Recommended application
ZG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06	94	6	14.8-15.1	2500	90.0	1.2	Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X	94	6	14.8-15.1	2400	91.5	1.0	Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
ZG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2	90	10	14.3-14.6	3800	91.7	0.7	Good general performance, suitable for casing and oil nozzle products
ZG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
ZG15X	85	15	13.8-14.2	4500	89.0	0.7	Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
ZN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
ZN11	89	11	14.0-14.3	2600	88.0	1.2
