Dome Type Fiber Optic Splice Closure DA-FOSC-IM144-J0968B-3

Price Negotiable
Price: Negotiable
MOQ: 100
Delivery Time: 7~14day
Brand: Dawnergy
Product Description

DA-FOSC-IM144-J0968B-3

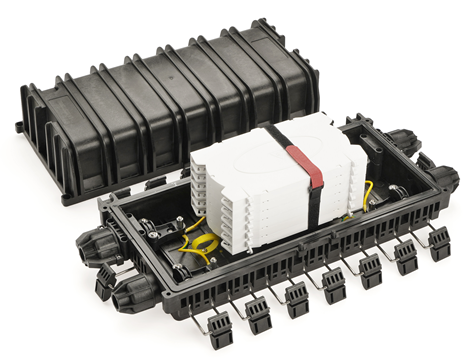

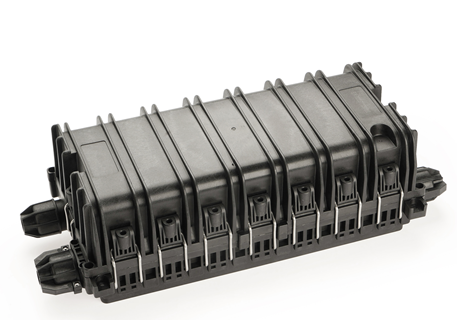

Dome Type Fiber Optic Splice Closure

Dawnergy's fiber optic splice closure is a kind of multi-purpose optical cable connection product, which can connect and divide optical fiber. The box can be applied to a variety of optical cable (loose sleeve, skeleton, ribbon, etc.) and can be installed in a variety of environments (overhead, wall, pipe-line, manhole, underground), and for a variety of connecting methods (distribution, bridge, branch, etc.).



Features

  • Structure: Compact, watertight and no screw design, open easily and user friendly
  • Capacity: support maximum 144 cores
  • Diameter: total 4 ports and suitable for Φ 10 to 18 mm cable
  • Sealing: Box sealed by buckles around and cables ports sealed by nuts to meet IP68
  • Installation: Aerial mounting, Manhole mounting, Wall mounting and underground



Applications

  • FTTH access networks
  • Telecommunication network



Specifications

Style In-line/ Horizontal
Dimensions 525(L)×200(W)×151(H) mm
Weight (kg) 3.5 - 4.0
Material PP+GF
Sealing Type Mechanical Seal
Protection Grade IP68
Cable ports 4
Cable diameter Φ 10-18 mm
Fiber Splice Capacity 144
Tray Capacity 24
Tray Count 6
Application Aerial mounting, Manhole mounting, Wall mounting and underground



Structure Drawing (mm)



Standard accessories(Pictures for reference only)

Item Description Qty Picture
1 Insulation tap 1 roll
2 Splicing protective tube 1 bag
3 Nylon cable tie 1 bag
4 Choke plug 2 pcs
5 Installation manual 1 set
6 EVA tube 1 roll



Optional accessory

Item Description Qty Picture
1 Air valve 1 set
2 Aerial mounting fittings 1 set
3 Wall mounting fittings 1 set
4 Grounding lead 1 set



Ordering Information

DA-FOSC-IM144-J0968B-144C-3



Dome type, Mechanical sealing; 144fibers, 6 trays of 24fibers/tray included; 4 cable ports; Max capacity: 144fibers; material: PP+GF, dimensions (mm): 525(L)×200(W)×151(H); Option accessories for wall, aerial mounting kits and air valve.
