Calibration Tools Granite Precision Surface Plate

1. Adopted high quality "Jinan Qing" natrual mateirial of granite, granite surface plate is manufactured by mechanical processing and manual polishing

2. It dosen't only own the interest of black gloss, precise construction, and outstanding characters - nice stability, high strength and hardness, etc. But also it is no rust, acid & alkali-proof, no magnetization, nice abrasion resistance and Can keep stable at normal or high tempreture.

3. the main mineral ingredients of granite are pyroxene, anorthose, less olivine, black mica and less magnetite. Aging through hundreds of millions years, the granite can still retain even character, stable, high strength and hardness, and can keep high precision at Heave duty. It is suitable for industrial production and measuring works at laboratory.

Specification:

1.Specific Gravity(Proportion):3.30g/cm3 or 2970-3070kg/m2

2.Shore Hardness:>70Hs-80Hs

3.Tensile strength:211Kg/cm2

4.Compressive strength:254-254Mpa

5.Linear expansion Coefficient:4.61'10-6/ºC

6.Elastic Modulus:30-50Gpa

7.Water Absorptivity:≤0.13%

8.Flexible grinding capacity:1.27-1.47N/mm2

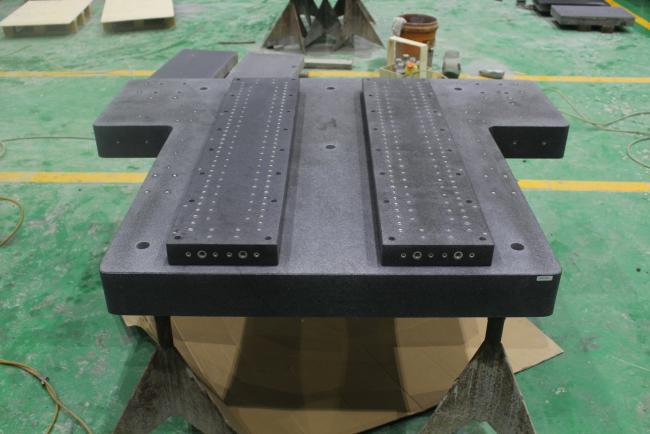

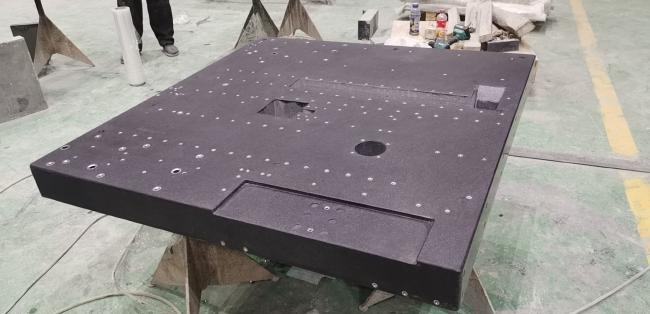

Granite Base For CMM Machine

CMM granite table is made by black granite. We have many kinds of granite which has good charateristic. We can manufacture granite surface plate for CMM with high precision 0.0005mm. we could produce according to customer's drawing.
