Bulk Cargo Flatbed Side Wall Semi Trailer Bottom 3mm With Linglong Tire
Bulk Cargo Side wall Semi Trailer Flatbed Trailer With Linglong Tire
. Main Details Of Our Side Wall Semi Trailer.
-. With bottom 3mm, side 1.5mm thickness.
-. The chassis thickness is lower plate 18mm, middle 8mm, upper plate 16mm.

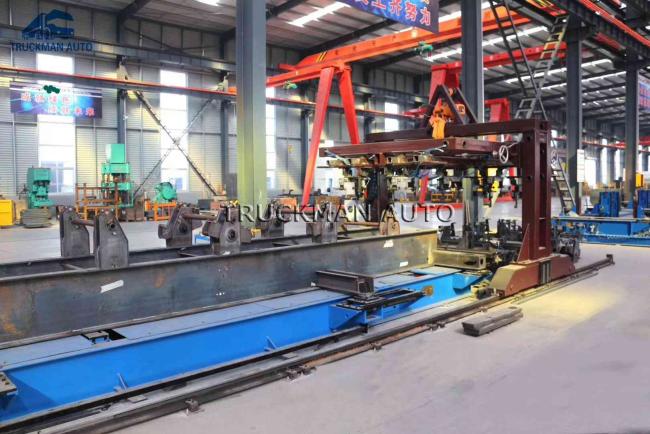

-. Adopt the automatic welding, "I" structure design. More stronger.
-. The truck rim thickness is 18mm, suitable for different road work condition request.
| Specification | |
| Overall (L*W*H) | 12400*2500*1530mm |
| Frame | Material:High strength Q345B steel |
| Main beam height:500 mm | |
| Thickness of main beam:upper: 16mm, lower: 18mm, webplate: 8mm | |
| Floor | 3 mm checkered plate |
| Side beam: | 16# channel steel |
| Axle | 3*13 tons FUWA axles |
| Tire | 12R22.5 Tire,12 pcs, LINGLONG brand |
| Braking System | WABCO, 6 Double-chamber , Duel Line Brake System |
| Suspension | Mechanical spring suspension, 10 pieces |
| King Pin | 2" (50#) or 3.5"(90#) high tensile steel bolted type |
| Landing Leg | JOST, 28T landing leg |
| Twist Lock | 12 pcs |
| Accessories | 1 waterproof tool box with stainless lock,2 spare tire carrier |
| Painting | Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats |
-2. FAQ.
-. Terms of paymemt
30% as the deposit by T/T, 70% balance before delivery.
-. What’s your MOQ?
One unit trailer or truck. But suggest two trailers one time to save the freight.
-. Can you accept the custom made?
Definitely! We could design the trailer according to your request.
-. What’s your warranty?
All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
