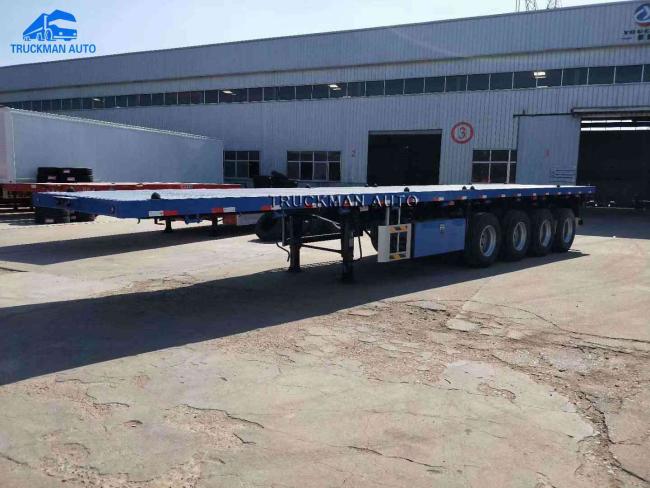

Q345 50 Tons 4 Axle 40FT Container Flatbed Semi Trailer
50 Tons 4 Axle 40FT Container Flatbed Trailer For Ghana
-1. 4 Axle Container Flatbed Trailer Main Detail.
Due to some countries have a loading tons limit, so the flatbed trailer suspension adopt the air lifting type is necessary. 4 Axle Container Flatbed Trailer is our design new trailer for Ghana, Senegal, Mali etc countries. The front axle could lifting, the rear 3 axle adopt the mechanical suspension
-2. 4 Axle Container Flatbed Trailer Main Specification.
| Description | Parameter value |
| Product Name | 4 Axle Container Flatbed Trailer |
| Loading Weight | 60,000kg |
| Tare Weight | 11,000kg |
| Axle | 4 axle, 4x13 tons |
| Suspension | America type, 8mm thickness |
| Leaf Spring | 90x16mmx10pcsx6sets |
| Rim | 16mm thickness |
| Tire | 12.00R20 or 315/80R22.5, 16 pcs |
| Brake System | WABCO brand, ABS and 8 pcs brake chamber |
| Thickness Of Frame |
Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
| Material | Q345, high strength steel |
| Others | 12 pcs container lock, 24 pcs rope tightener |
| Dimension | 12500x2500x1550+800mm |
The specification is only for reference, we could design the flatbed trailer according to your request.

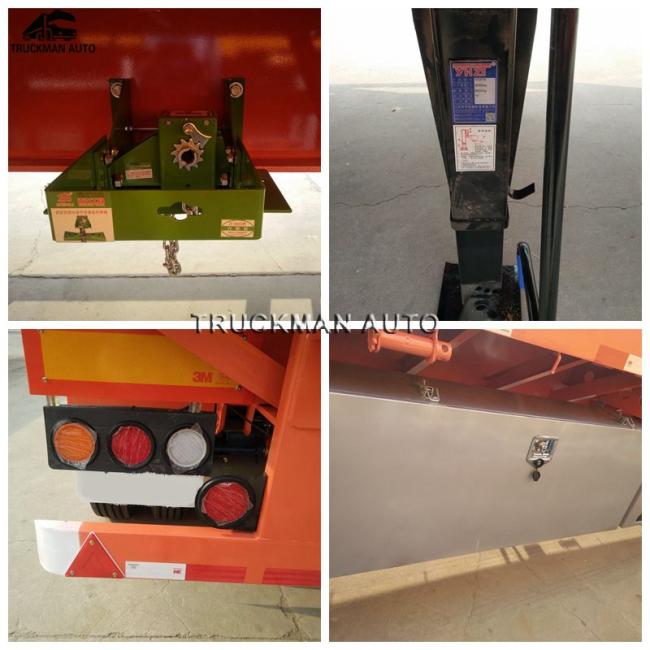

-3. 4 Axle Container Flatbed Trailer Detail Picture.
our TRUCKMAN AUTO brand 4 Axle Container Flatbed Trailer main spare parts work with famous brand, such as JOST support leg and tractor pin, LINGLONG brand tire, WABCO brake system etc.
