600mm Side Wall Flatbed Cargo Trailer With WABCO Brake
800+600mm Side Wall Flatbed Cargo Trailer For Bulk Cargo Haul
-1. Flatbed Cargo Trailer Main Advantage.
-. Mainly used for bulk cargo transport, easier operating.
-. With FUWA axle, LINGLONG brand tire, long service life.
-. The trailer adopt the WABCO brand brake valve and ABS, more safety.
-. Material use high strength steel, more stronger.
-2. Flatbed Cargo Trailer Main Specification.
| Description | Parameter value |
| Product Name | Flatbed Cargo Trailer |
| Loading Weight | 60,000kg |
| Tare Weight | 10,500kg |
| Axle | 3 axle, 3x13 tons |
| Suspension | America type, 8mm thickness |
| Leaf Spring | 90x16mmx10pcsx6sets |
| Rim | 16mm thickness |
| Tire | 12.00R20, 12 pcs |
| Brake System | WABCO brand, ABS and 6 pcs brake chamber |
| Thickness Of Frame |
Upper plate 16mm, middle 8mm lower plate 18mm, “I” type main beam |
| Material | Q345, high strength steel |
| Cargo Box | 12300x2300x800+600mm |
| Dimension | 12500x2500x3200mm |
The specification is only for reference, we could design the Flatbed Cargo Trailer according to your request.

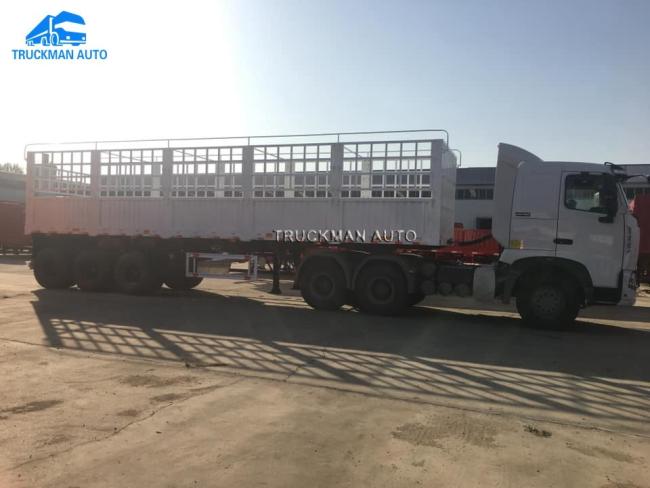

-3. Flatbed Cargo Trailer Chassis Picture.
All TRUCKMAN AUTO brand semi trailer chassis enhanced, the suspension, leaf spring, rim thickness meet any kind of road condition and work condition request.
