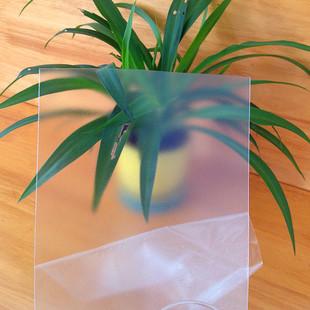

Transparent PETG Plastic Sheet 0.10-0.76 Thickness With Outstanding Toughness
Transparent PETG Card Core Sheet or Card Base Sheet for PETG Card Body Production Purpose
| 1. Introduction of Transparent PETG Card Core Sheet or Card Base Sheet for PETG Card Body Production Purpose |
The performance of such PETG plastic sheet is quite different from PET and PC. PETG plate has outstanding toughness and high impact strength, its impact strength is 3-10 times more than ordinary plastic plate, and it has a wide processing range, high mechanical strength and excellent flexibility. Compared with PVC, it has high transparency, good luster and easy to print. At the same time, PETG has environmental protection advantages, and it can be recycled without polluting the environment. PETG sheet has low flammability, good fire resistance, no combustion support, low smoke emission, no harmful substances after combustion.
It is widely used in card base production. It has such features as impact resistance, high temperature resistance, anti-static, abrasion, folding and high strength. It is widely used for the production of high-end credit cards, ID cards and passport, etc.
Characteristic:
1.Good lamination properties
2.Good impact resistance
3.Good chemical resistance
4.Excellent printability with either offset or screen printing
5.Laminating Temp 120 degrees Celcius-130 degrees Celcius (lab conditions)
Features:
1). High chemical stability, fine anti-fire .
2). Highly UV .stabilized, good mechanical properties, high hardness and strength.
3). Well aging resistance, good self-extinguishing property and reliable insularity.
4). It is waterproof and with very good smooth surface, and also it is non deformable.
5). Non-toxic, environment-friendly material
6). Vivid color and high resolution photo quality.
7). Longer service life
8). The important feature: anti-stastic , anti-UV, anti-sticky
9). Application: plastic card production , chemical industry, oil industry, galvanization, water purification equipments, environment. protection equipments, medical appliance and so on.
| 2. Specification of Transparent PETG Card Core Sheet or Card Base Sheet for PETG Card Body Production Purpose |
Technical Parameters:
| Item | Parameters |
| Vicat softening point (B50) | 78±2 |
| Vicat softening point (A120) | 80±2 |
| Heating Shrinkage ratio 105 ℃/10min | ≥-8.0 % (longitudinal) &≥-4.0 %(transverse) |
| Surface Dyne (dynes/cm) | ≥38 |
| Normal thickness in mm | 0.1-0.76 |
| Density (g/cm3) | 1.30 ±0.05 |
| Peel Strength (90°, 300mm/min) | ≥6.0 N/cm |
| Aging time (65℃ temp./95% humidity ) | ＞200 hours |
| Suitable printers | Offset or silkscreen printers |
| Product name | PETG Plastic Card Base for Card Body Production - White Plastic Card Core Sheet |
| Color | White |
| Thickness | 0.10 mm -0.76 mm |
| Vicat softening point (B50) | 78±2 |
| Vicat softening point (A120) | 80±2 |
| Density | 1.3±0.05 (g/cm3) |
| Heat shrink | ≥-8.0 % (longitudinal) &≥-4.0 %(transverse) |
| Surface tension | ≥38 dynes/cm |
| Glue coated | Without coating on both sides |
| Storage | Sealed, moisture-proof, room temperature under 40℃ |
| 3. Application of Transparent PETG Card Core Sheet or Card Base Sheet for PETG Card Body Production Purpose |

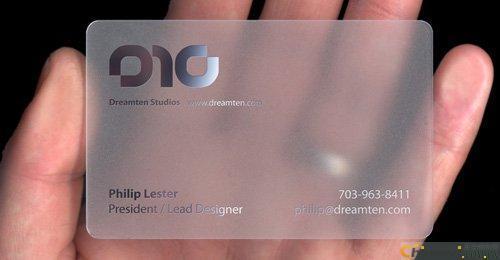

It is used for the production of Various cards and passport including Nationaly ID Card, driver license cards or other high end cards.

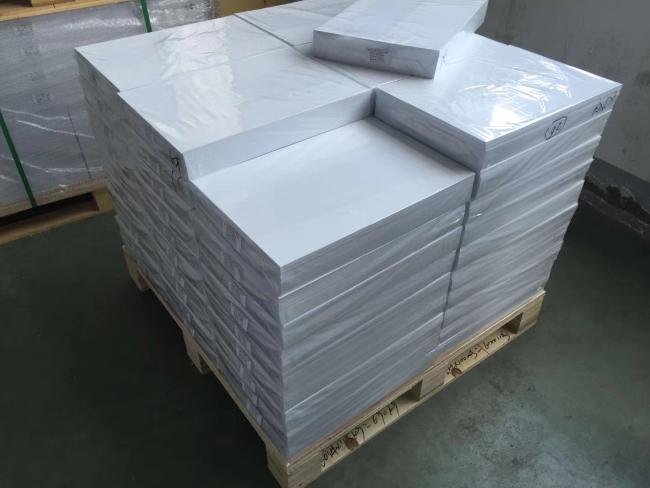

| 4. Packing and Storage of Transparent PETG Card Core Sheet or Card Base Sheet for PETG Card Body Production Purpose |
