Stainless Steel Linear Vibrating Sieve Tea Grain Salt Vibrating Screen
Product Introduction
Stainless Steel Tea Grain Salt Vibrating Screen Linear Vibrating Sieve
Linear vibrating sieve is a common closed light vibrating screen equipment, the use of vibration motor excitation as the vibration source, so that the material on the screen surface is a jump straight forward motion, the material from the feeder evenly into the screen machine feed port, through the multi-layer screen to produce several specifications of the screen, screen under the material, respectively from their discharge port.
It uses double motor as a vibration source, double motor linear vibrating screen is designed to reduce the height of the machine, convenient for the operator to carry out manual feeding and design, very suitable for some production lines of continuous production operations.
Product Parameter
| Model | DZSF-520 | DZSF-525 | DZSF-530 | DZSF-1020 | DZSF-1025 | DZSF-1030 |
| Size(mm) | 500*2000 | 500*2500 | 500*3000 | 1000*2000 | 1000*2500 | 1000*3000 |
| Material size | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 | 0.074-10 |
|
Frequency of vibration (times/m) |
960 | 960 | 960 | 960 | 960 | 960 |
| Leaning angle of screen(°) | 0~7 | 0~7 | 0~7 | 0~7 | 0~7 | 0~7 |
| Amplitude | 3-4.5 | 3-4.5 | 3-4.5 | 3-4.5 | 3-4.5 | 3-4.5 |
| Layer | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 |
| Power(kw) | 2*(0.4-0.75) | 2*(0.4-0.75) | 2*(0.4-0.75) | 2*(0.4-1.1) | 2*(0.4-1.1) | 2*(0.4-1.5) |
Product Feature
1) Stable and reliable, less consumption, low noise, long life, stable mode, high screening efficiency.
2) It can be used single-layer or multi-layer, the screen frame is generally wooden structure, if the output requirement is higher when the screen frame can be made of steel
Structure, if screening corrosive materials, the contact part with the material is made of stainless steel.
3) Good sealing, less dust overflow.
4) Less energy consumption, low noise, long service life of the screen.
5) High screening precision, large processing capacity, simple structure.
6) Fully closed structure, automatic discharge, more suitable for assembly line operation.
7) Each part of the screen body is welded with tie steel plate and profile (part of the body is bolted) the overall stiffness is good, firm and reliable.
Working principle
Linear vibrating sieve work, the two motor synchronous reverse rotation of the vibrator generated reverse exciting force, forcing the linear screen body to drive the screen to do longitudinal motion, so that the material on the vibration force and periodic forward throw a range, so as to complete the material screening operation. Linear vibrating screen is driven by double vibrating motor. When the vibration motor of two linear screens do synchronous, anti-fou rotation, the vibration force generated by the eccentric block in the direction parallel to the motor axis offset each other, in the direction perpendicular to the motor shaft stacked as a resultant force, so the motion trajectory of the screen machine for a straight line. Two motor shaft relative screen surface has a dip Angle, under the combined force of vibration force and material since gravity, the material is thrown up on the screen surface for linear motion, so as to achieve the purpose of screening and classification of materials.

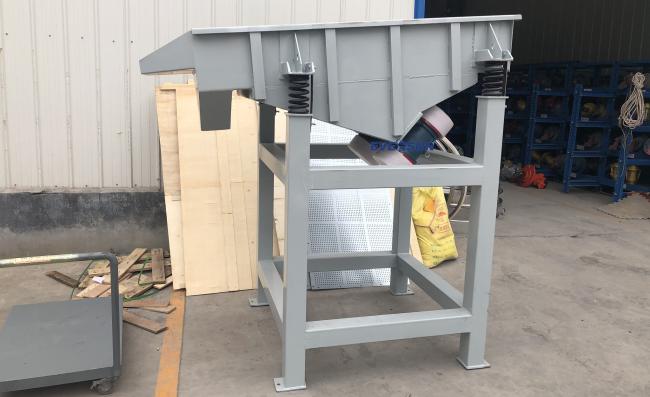

Product picture
We can customize different types of linear vibrating sieve, if you want to customize your machine, please contact us.
