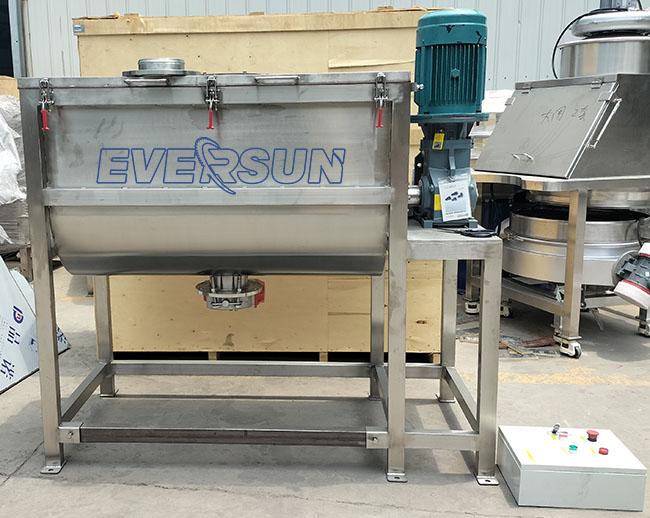

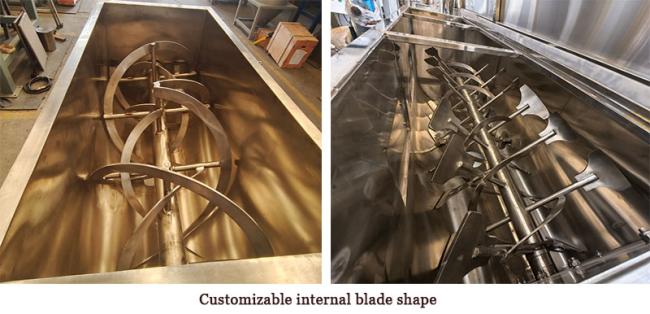

Customizable internal blade shape 304 stainless steel ribbon mixer

Structural features
1. The machine is a horizontal cylinder, and the inner and outer two-layer spiral belt has a unique structure, stable operation, reliable quality, low noise, long service life, easy installation and maintenance, and a variety of agitator structures, a multifunctional mixing equipment with a wide range of uses. The mixing effect of the horizontal spiral belt mixer is not affected by the size and density of the particles.
2. The mixing speed is fast and the mixing uniformity is high. The scraper can be installed on the spiral belt, which has a good mixing effect on sticky materials.
3. According to the mixing requirements of different materials (special materials need to be cleaned each time they are mixed), different spiral belt structures can be used, and heating and drying jackets can be provided for customers to choose.
4. The forward and reverse rotating spiral belts are installed on the same horizontal axis to form a low-power and effective mixing environment. The smooth mixing process reduces the damage to fragile materials, and the flying knife structure is installed to play a crushing role, and the spray system can be installed. The liquid and powder are fully and evenly mixed.
5. A cleaning door can also be opened on the horizontal body for users to clean. The overall height of the equipment is low and easy to install.

Technical specification

Application

Ribbon mixers can be widely used in mixing various types of powdered, granular and bulk materials, mainly including the following categories:
1. Chemical raw materials
Various powder chemicals such as plastic particles, pigment powder, activated carbon and other adsorbents
2. Food raw materials
Such as flour, starch and other grain powders, seasonings, nutritional supplements, medicinal plant extracts
3. Building materials
Such as cement, mortar, dry mortar, ceramic powder, insulation materials
4. Mining and metallurgical raw materials
Such as ore powder, metal powder, ceramic raw materials, glass materials.

Service and ordering

                                                Our service

1. Consulting service
Provide professional equipment selection suggestions based on the specific production needs of customers. Provide detailed introduction and description of the functions, parameters, applicable materials, etc. of the equipment.
2. Repair and maintenance
Establish a complete after-sales service network and provide fast-response repair support.
3. Technical support
Provide customers with technical guidance such as equipment optimization and process improvement.
4. Spare parts supply
Establish spare parts inventory to ensure that customers can get the required accessories at any time.

How to choose ribbon mixer

The following key factors need to be considered when selecting a ribbon mixer:

1. Material properties
Physical and chemical properties of materials such as particle size, shape, density, fluidity, viscosity, cohesion, chemical corrosion, heat resistance, etc.
2. Production requirements
Required mixing capacity and production capacity, mixing time and mixing quality requirements, whether a special mixing environment is required (such as vacuum, inert atmosphere, etc.)
3. Mechanical structure
Parameters such as the material, length, inclination angle of the screw ribbon, the material and structural form of the shell (such as single screw, twin screw, etc.), supporting auxiliary equipment such as feeding, unloading, control system, etc.
4. Safety and environmental protection
Whether explosion-proof, dust-proof and other safety designs are required, whether dust emissions meet environmental protection requirements, and whether special cleaning and maintenance measures are required.
