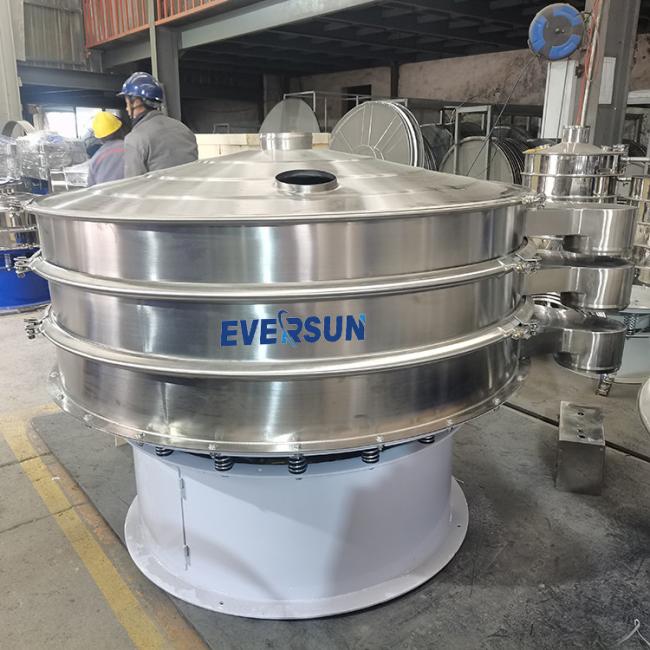

Product Shows

The rotary vibrating screener is a high-precision fine powder screening machine, which has low noise, high efficiency, and can be quickly changed in3-5 minutes. It has a fully enclosed structure and is suitable for screening and filtering of particles, powders, and liquids.

Working Principle

The 3D rotary vibrating screen, powered by a vertically mounted motor as the excitation source, has eccentric weights installed at both ends of the. It converts the motor's rotational motion into three-dimensional movements of horizontal, vertical, and inclined directions, and then transfers this movement to the screen surface, the material on the screen to move in an expanding involute path. Therefore, this series of vibrating screens is called a rotary vibrating screen.

In actual application, by adjusting the relative phase of the eccentric blocks at the upper and lower ends of the vibrating motor, the movement trajectory of the on the screen surface can be changed, thus achieving different screening operation objectives.

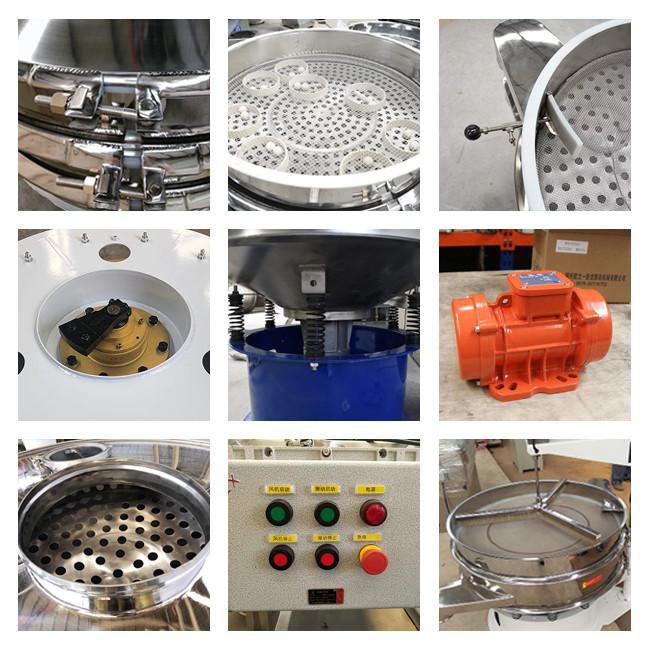

Features And Advantage

1. Small size, light weight, easy to move, the direction of the discharge port can be adjusted arbitrarily, coarse and fine materials are discharged, can be automated or manual operation.

2. High screening accuracy, high efficiency, any powder, granules, and viscous liquids can be used.

3. The screen does not clog, no dust flies, the finest screening can reach 500 mesh (28 microns), and the finest filtration reach 5 microns.

4. Unique screen frame design (mother and child style), long screen life, easy to change screens, only takes 3- minutes, simple operation, easy to clean.

5. No mechanical action, easy maintenance, can be used in single or multiple layers, the parts in contact with material are made of stainless steel (except for pharmaceutical use).
