Large Capacity Food Powder Granule Plastic Vacuum Feeder

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: within 15 work days

Brand: EVERSUN MACHINERY

Product Description

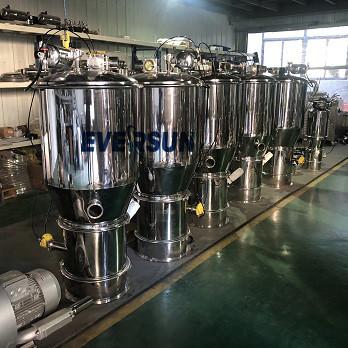

Large capacity food powder granule plastic vacuum feeder

Working principle:


EVC series pneumatic vacuum conveying system, which usually consists of feed station, soft tube, separator tank (or Three-way valve), secondary filter and high pressure air pump, is the ideal method for conveying or moving bulk materials, such as free-flowing powder and granules, from place to place within a factory by using pneumatic suction.

The high pressure air pump generates strong air flow inside the conveying system. Air rushes in through the suction inlet of feeding point, where bulk material is carried in this air stream. Then the bulk material is conveyed into the separator tank (or three-way valve) with the air stream, which separate most of the bulk material from the air and discharge it into the delivery point. The air with small quantity of fine powder flows through the secondary filter and is exhausted by the air pump.

Two types of conveying system are available depends on different receiving hoppers:

Type A: Conveying to sealed hopper. The hopper should be air-tight and a three-way valve for separating bulk material from air has to be inserted into the hopper. The conveying process is continuous.

Type B: Conveying to top-open hopper. The separator tank, usually includes filter, flap valve and air shock tank, should be mounted above the hopper. When the separator tank is filled with bulk material, the air pump switches off automatically. Meanwhile, the air shock tank release the compressed air from inside of filter to blow off the fine particles and the flap valve opens to discharge the bulk materail into the beneath hopper. The system often operates based on timed interval. If air locker (air tight rotary valve) is equipped, the operation can be continuous.

Main features:

1. Convey or move bulk materials from place to place within a factory by using suction

2. Vauum pump: high pressure air pump

3. Conveying capacity: 400-5000 kg/h

4. Conveying length: less than 20 meters

5. GMP design

Product parameters

Item type	Model	Powder (kw)	Overall size (mm)	Diameter of Suction pipe (mm)
Electrical Vacuum Conveyor Systems	EZKS-1	1.5	φ220*820	38
	EZKS-2	2.2	φ220*820	38
	EZKS-3	3	φ290*950	51
	EZKS-4	5.5	φ420*1250	51
	EZKS-5	5.5	φ420*1350	51
	EZKS-6	7.5	φ420*1450	63
	EZKS-7	7.5	φ420*1650	76
Machine can be customized based on your need

Product Structure

Technical advantages:


Dust free transfer of bulk materials: Negative pressure inside the conveying system and two-stage filter can create dust free condition
Easy to clean: The conveying system can be easily dismantled for cleaning
Small foot print: The conveying soft tube takes up little or no floor space within your facility
Easy to install: The conveying system is connected by quick-open clamps which makes the installation very easy
GMP standatrd: The system is made by stainless steel and mirror polished. No dead corners for cleaning.
Low noise and power consumption: Noise in operation is less than 60 dB.

FAQ:

Q: What information should be provided in order to get a proposal or quotation?
A: Our vacuum conveyor is customerized. Before we can work out a detailed quotation, we have to know the following information:

1) What product you are going to convey
2) Product particle size and bulk density
3) Conveying distance and height
4) Conveying capacity in kg/h

Q: How the machine will be delivered ?
A: Te conveyor is packed in plywood box for shipping
