9.9KW Equipped Power Industrial Horizontal Ploughshare Mixer

Type HPM colter mixer (hereinafter referred to as the mixing machine) is made up of the company developed a new type, efficient powder mixing equipment. This machine is widely used in chemical, pharmaceutical, pesticide, plastic, rubber, chemical fertilizer, building materials, concrete admixtures, foodstuff, monosodium glutamate, salt, feed additives, dye, metallurgy, mining and other industries of solid - solid (that is, the powder mixed with powder), solid - liquid (i.e., adding liquid powder), and wet granulation, drying, concentration and other composite technology. Is a kind of strong adaptability, wide application of multifunctional mixing equipment.





Product Application

It is suitable for the mixing of solid-solid(powder and powder),solid-liquid (adding a small amount of liquid into the powder) and some compound technology. Process such as granulating wet particle and drying, especially it is suitable for the mixing of viscous material or glue 一 like additive.





Technical Parameters

Model	HPM-0.5
Mixed a mount/batch(kg)	200-300
Equipped power(kw)	9.9
Weight(kg)	1100





Product Working Principle

After mixing machine start coulter by coulter axis rotation, made material along barrel radial circumferential turbulent, at the same time on both sides of the material along the coulter surface normal direction. When thrown and materials for weeks to turbulent flows through fly knife group, by high speed rotating rapidly and effectively scatter. Materials in the compound under the action of the coulter and throwing knives, constantly more fold, diffusion, in a short period of time to achieve uniform mixing, mixed with high precision.
For the material that need to be mixed solid - liquid, mixed liquid through spray device evenly sprayed on the cylinder body movement of the material.

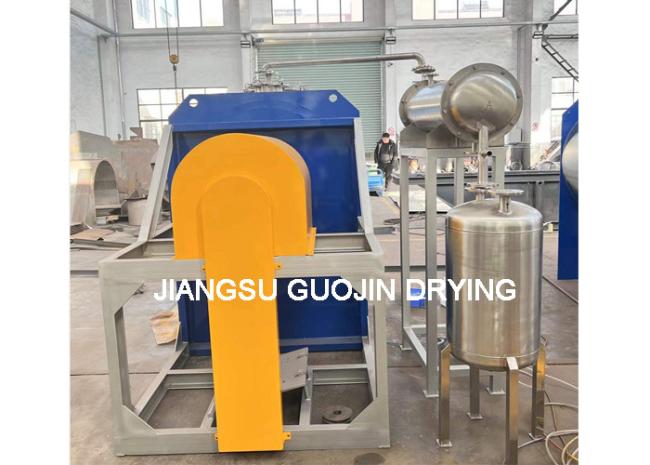

Product Show
