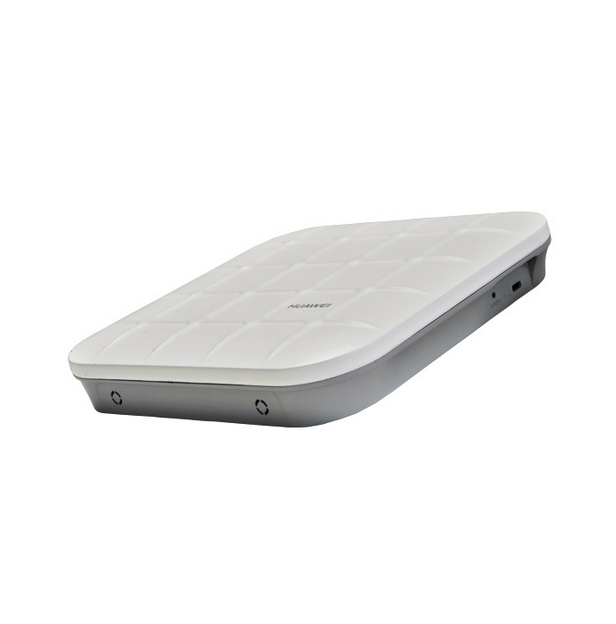

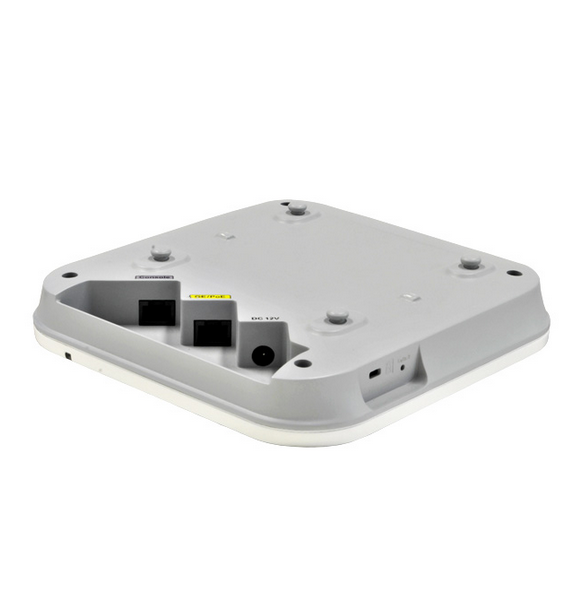

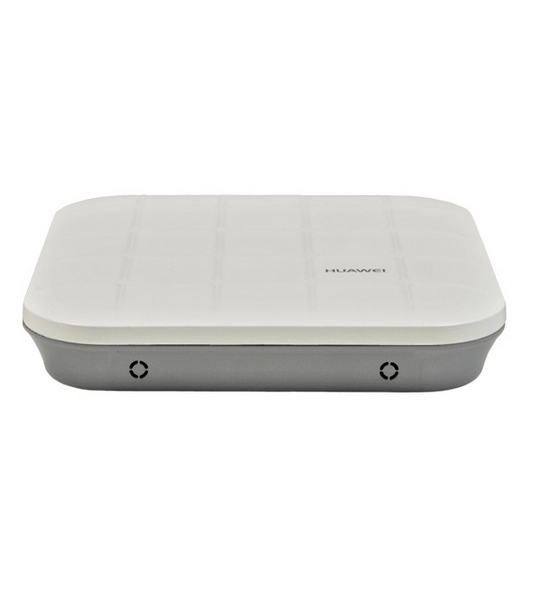

Original Huawei AP4030DN-E Indoor POE Wireless Access Point
The original Huawei AP4030DN-E indoor wireless access point AP is suitable for large high-density scenarios
Huawei’s cost-effective 802.11n/ac AP4030DN and AP4130DN Access Points (APs) provide gigabit access to greatly improve a user’s experience on wireless networks. This series of APs is best suited for small and medium enterprises, airports and stations, sports stadiums, cafés, and entertainment centers.
In compliance with IEEE 802.11ac, the AP4030DN and AP4130DN support 2 x 2 MIMO. The APs offer comprehensive service support capabilities, and feature high reliability, high security, and easy network deployment.
Simplify your Operations and Maintenance (O&M) with automatic AC discovery and configuration, real-time management and maintenance with Huawei’s AP4030DN and AP4130DN APs.
|
Specifications |
AP4030DN |
AP4130DN |
|
Dimensions (H x W x D) |
180 mm x 180 mm x 39.5 mm |
180 mm x 180 mm x 39.5 mm |
|
Power Input |
12V DC ± 10% PoE: -48V DC (in compliance with IEEE 802.3af/at) |
12V DC ± 10% PoE: -48V DC (in compliance with IEEE 802.3af/at) |
|
Maximum Power Consumption |
10.2W |
10.2W |
|
Operating Temperature |
-10°C to 50°C |
-10°C to 50°C |
|
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 4 dBi; 5 GHz: 6 dBi |
Removable RP-SMA antenna/2.4 GHz: 2.5 dBi; 5 GHz: 4 dBi |
|
Maximum Number of Users |
≤ 256 |
≤ 256 |
|
Maximum Transmit Power |
23 dBm (combined power) |
23 dBm (combined power) |
|
MIMO: Spatial Streams |
2 x 2:2 |
2 x 2:2 |
|
Wireless Protocols |
802.11a/b/g/n/ac |
802.11a/b/g/n/ac |
|
Highest Rate |
1.167 Gbit/s |
1.167 Gbit/s |
