UBNT 14° Beamwidth 8.5W IS-5AC Gigabit Network Bridge
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
UBNT
Product Description
UBNT wireless network bridge IS-5AC Gigabit network bridge isolation interference replaceable antenna wireless managemen
IS-5AC Description:

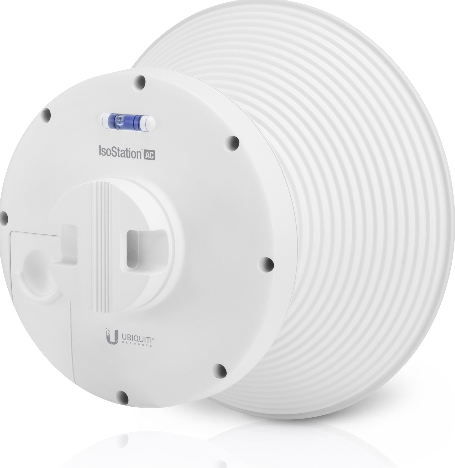

IS-5AC
1.Is a shielded and protected network bridge.
2.The model adopts a die-cast aluminum alloy shell and its antennas can be interchanged.
3.This technology makes the communication beam between the device and the device better isolated, improves performance and stability.
3.And its throughput rate Up to 450Mbps or more, according to specific deployment and environmental needs.
4.The radio frequency beam shape can be adjusted by replacing the horn antenna.
5.The asymmetric horn antenna fundamentally reduces the sidelobe and extremely low reverberation leakage, making it perform better than drinking sidelobe radiation before and after.
|
|
Specification:
| IS-5AC | |
|
Dimensions |
174 x 174 x150 mm |
|---|---|
|
Weight |
725.7g (1.60 lb) |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port |
|
Enclosure |
Outdoor UV Stabilized Plastic |
|
Max. Power Consumption |
8.5W |
|
Power Supply |
24V, 0.5A Gigabit PoE Adapter (Included) |
|
Power Method |
24V Passive PoE In (Pairs 4, 5+; 7, 8-) |
|
Supported Voltage Range |
22 - 26V |
|
Gain |
24 dBi |
|
Beamwidth |
14° |
|
Sidelobe Level |
-10 dB |
|
Front-to-Back Ratio |
27 dB |
|
Mounting |
Pole-Mount (Kit Included) |
|
Wind Loading |
150 N @ 200 km/h (33.72 lbf @ 125 mph) |
|
Wind Survivability |
200 km/h (125 mph) |
|
ESD/EMP Protection |
± 24kV Contact/Air |
|
Operating Temperature |
-40 to 60° C (-40 to 140° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
