26dBi 200km/h Wireless Surveillance Bridge RocketDish RD-3G26
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
UBNT
Product Description
UBNT Outdoor Wireless Surveillance System RocketDish RD-3G26 High Bandwidth Wireless Bridge 200 km/h
Description:

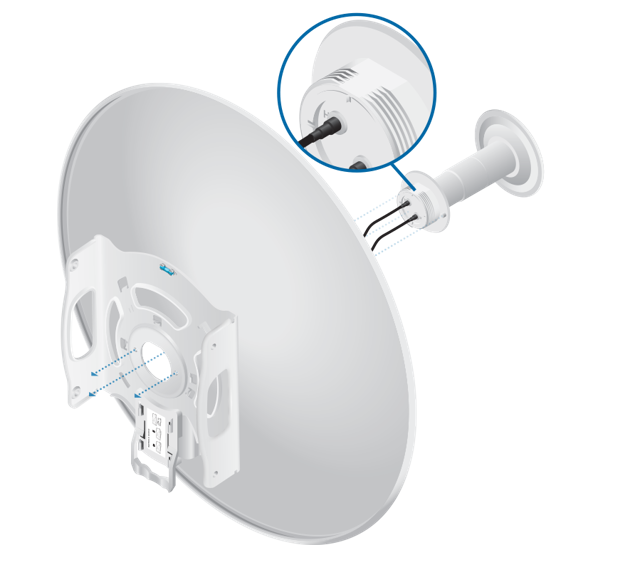

Installation Requirements
- Rocket®M3/M3 GPS or RocketM365/M365 GPS (sold separately)
- Phillips #1 screwdriver
- 16 mm or 5/8" wrench
- 24 mm wrench
- Shielded Category 5 (or above) cabling with drain wire should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Specification
| RocketDish RD-3G26 | |
|
Dimensions |
650 x 650 x 300 mm (25.59 x 25.59 x 11.81") |
|---|---|
|
Weight |
9.8 kg (21.61 lb) |
|
Frequency |
3.35 - 3.75 GHz |
|
Gain |
26 dBi |
|
HPOL Beamwidth |
7° (3 dB) |
|
VPOL Beamwidth |
7° (3 dB) |
|
Front-to-Back Ratio |
-33 dB |
|
Max. VSWR |
1.7:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
787 N @ 200 km/h (177 lbf @ 125 mph) |
|
Polarization |
Dual Linear |
|
Cross-Pol Isolation |
35 dB Min. |
|
Mounting |
Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included |
