STM32F407ZGT6 LQFP144 microcontroller 32-bit Ethernet MAC single-chip microcomputer chip IC

STM32F407ZGT6: ARM Cortex-M4 32-bit MCU+FPU, 210DMIPS, up to 1 MB Flash/192 + 4KB RAM, USB OTG HS/FS, Ethernet, 17 TIM, 3 ADC, 15 communication interfaces, camera.

Characteristic:

1. Kernel: ARM® 32-bit Cortex®-M4CPU with FPU, adaptive real-time accelerator (ART Accelerator™) that achieves zero wait state running performance in Flash memory, main frequency is up to 168MHz, MPU can achieve up to 210 DMIPS /1.25DMIPS/MHz (Dhrystone 2.1) performance, with DSP instruction set

2. Memory

①Up to 1 MB Flash: The address starts from 0x8000000 and the size is: 0x100000, which is 1M

②Up to 192+4 KB of SRAM, including 64-KB of CCM (core coupled memory) data RAM

  I. Ordinary memory: the address starts from 0x20000000, the size is: 0x20000, which is 128k This part of the memory can be accessed by any peripheral

  II. CCM memory: the address starts from 0x10000000, and the size is: 0x10000 or 64k This part of the memory can only be accessed by the CPU, and not directly accessible by DMA

  III. Backup SRAM: size: 4 K

③Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, NOR/NAND memory

3. LCD parallel interface, compatible with 8080/6800 mode

4. Clock, reset and power management

– 1.8 V to 3.6 V power supply and I/O

– POR, PDR, PVD and BOR

– 4 to 26 MHz crystal oscillator

– Built-in factory-tuned 16 MHz RC oscillator (1% accuracy)

– 32 kHz RTC oscillator with calibration function

– Built-in 32 kHz RC oscillator with calibration function

5. Low power consumption

– Sleep, shutdown and standby modes

– VBAT can supply power for RTC, 20×32-bit backup register + optional 4 KB backup SRAM

6. Three 12-bit, 2.4 MSPS ADCs: up to 24 channels, performance in triple interleaved mode up to

7.2 MSPS 7, 2 12-bit D/A converters

8. General DMA: 16-channel DMA controller with FIFO and burst support

9. Up to 17 timers: 12 16-bit timers, and 2 32-bit timers with a frequency of up to 168 MHz, each with 4 input capture/output compare/PWM, or pulse counter and Quadrature (incremental) encoder input

10. Debug mode

  – SWD & JTAG interface

  – Cortex-M4 tracking macrocell ™

11. Up to 140 I/O ports with interrupt function

  – Up to 136 fast I/Os, up to 84 MHz

  – Up to 138 I/Os capable of 5 V

12. Up to 15 communication interfaces

  – Up to 3 I2C interfaces (SMBus/PMBus)

  – Up to 4 USART/4 UARTs (10.5 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)

  – Up to 3 SPIs (42 Mbits/s), 2 full-duplex I2S with multiplexing, audio-grade precision achieved through internal audio PLL or external clock

  – 2 CAN (2.0B active) and SDIO interfaces

13. Advanced connection function

  – USB 2.0 full-speed device/host/OTG controller with on-chip PHY

  – USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI

  – 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII

14. 8~14 bit parallel camera interface: speed up to 54MB/s

15. True random number generator

16. CRC calculation unit

17. RTC: sub-second precision, hardware calendar

18. 96-bit unique ID

Compared with Cortex-M3 products such as STM32F1/F2, the biggest advantage of STM32F4 is the addition of hardware FPU unit and DSP instructions. At the same time, the main frequency of STM32F4 has also increased a lot, reaching 168Mhz (which can obtain 210DMIPS processing power). STM32F4 is especially suitable for applications that require floating-point operations or DSP processing. It is also called: DSC, which has a very wide range of application prospects.

Detailed description:

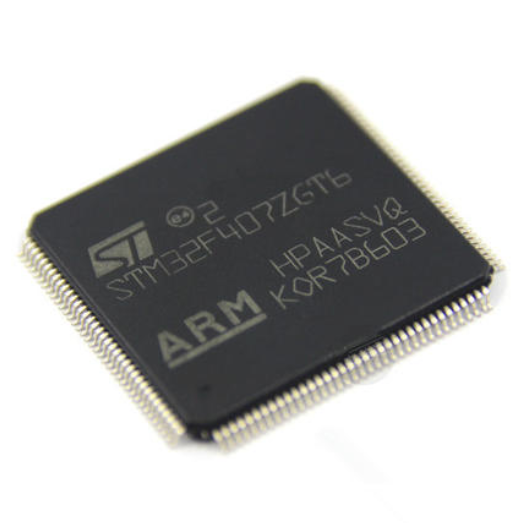

Picture details:
