Switch Capacity 32Gbps Dream Machine Pro Unifi 10 Gbps SFP

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Brand: UBNT
Product Description

UBNT UniFi AC Manager UDM-PRO Dual WAN Security Gateway Gigabit SFP+ NVR





Overview

The Dream Machine Pro is an all-in-one network appliance for a scalable network in an office, retail, or hospitality environment. Powered by a fast 1.7 GHz quad-core processor, the UDM Pro combines multiple functions into a single device: • Advanced Security Gateway with Built-in Switch • Dual WAN Ports: One 10G SFP+ and One Gigabit RJ45 • One 10G SFP+ LAN Port • Embedded Enterprise Software:Network • 3.5" HDD Bay for NVR Storage (2.5" HDD also supported) Software The UDM Pro includes the Network Controller so you can manage your Switches and APs. It can also run the Protect software for convenient monitoring and complete management of your camera surveillance system. Video recordings are stored on the built-in NVR (hard drive not included) and can be easily accessed using the Protect mobile app. Via remote access, you can securely view the recordings that are privately stored on the UDM Pro rather than a third-party server.

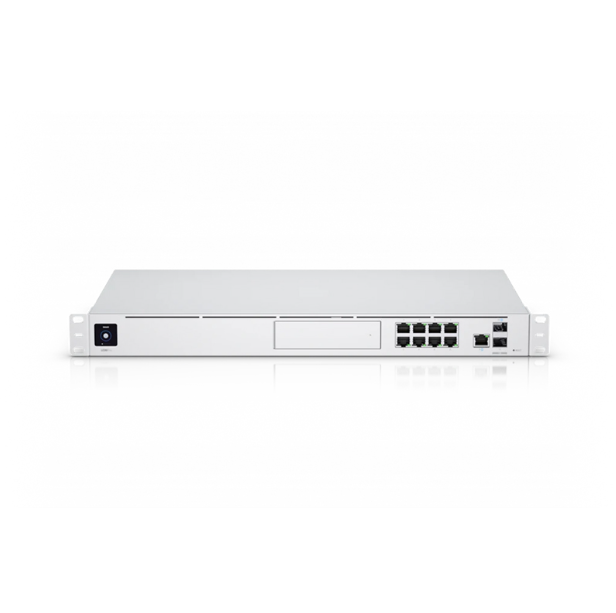

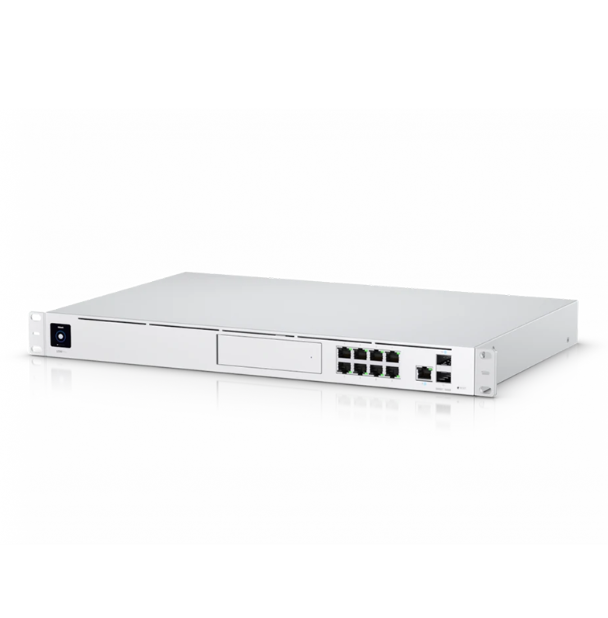

Dream Machine Pro
• WAN ports
• (1) 10G SFP+ port
• (1) Gigabit RJ45 port
• LAN ports
• (1) 10G SFP+ port
(8) Gigabit RJ45ports
• 3.5" HDD Bay (also supports 2.5" HDD)
• 1U Rackmountable (hardware included)

UDM-Pro
Dimensions
442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight With Brackets
3.90 kg (8.60 lb) 3.99 kg (8.80 lb)
Interfaces Networking
Management
(8) 10/100/1000 RJ45 LAN Ports (1) 10/100/1000 RJ45 WAN Port (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port Ethernet In-Band (1)
Bluetooth BLE
IDS/IPS Throughput
3.5 Gbps*

Processor
Quad ARM Cortex-A57 Core at 1.7 GHz
System Memory
4 GB DDR4
On-Board Flash Storage
16 GB eMMC
Max Power Consumption
33W
Voltage Range
100 to 240VAC
Power Method
(1) Universal AC Input,100-240VAC, 50/60 Hz (1) RPS DC Input
Power Supply
Internal 50W/12V
