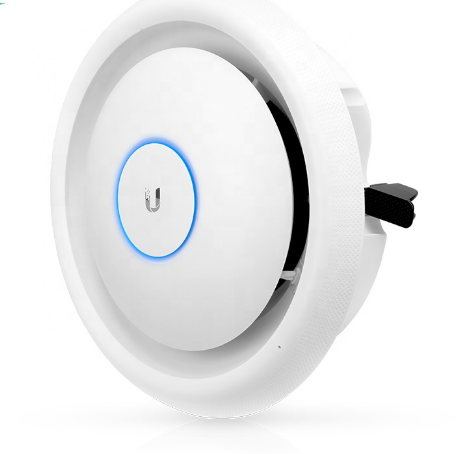

UAP-AC-EDU Poe Wireless Access Point Ceiling Mount Dual Band
High-Quality UBNT UAP-AC-EDU 802.11ac 3x3 MIMO AP Gigabit Dual Band
Installation Requirements
-
Phillips screwdriver
-
Drill and drill bit (6 mm for wall-mounting or 3 mm for ceiling-mounting)
-
Optional: Drywall or keyhole saw (to cut 18 mm hole for Ethernet cable feed)
-
Cat5/6 UTP cable for indoor installations
System Requirements
-
Linux, Mac OS X, or Microsoft Windows 7/8/10
-
Java Runtime Environment 1.8 or above recommended
-
Web Browser: Google Chrome (Other browsers may have limited functionality.)
Specifications
|
UAP-AC-EDU |
|
|
Dimensions |
287.5 x 287.5 x 125.9 mm (11.32 x 11.32 x 4.96") |
|---|---|
|
Weight |
1.820 kg (4.012 lb) |
|
Networking Interface |
(2) 10/100/1000 Ethernet Ports |
|
Port |
(1) USB Port |
|
Buttons |
Reset |
|
Power Method |
802.3at PoE+ |
|
Power Supply |
48V, 0.5A PoE Gigabit Adapter1 |
|
Supported Voltage Range |
44VDC to 57VDC |
|
Max. Power Consumption |
20W |
|
Operating Frequency |
2.4 GHz 5 GHz |
|
Max. TX Power |
|
|
2.4 GHz |
22 dBm |
|
5 GHz |
22 dBm |
|
MIMO |
|
|
2.4 GHz |
3 x 3 |
|
5 GHz |
3 x 3 |
|
Throughput Speeds2 |
|
|
2.4 GHz |
450 Mbps |
|
5 GHz |
1300 Mbps |
|
Range2 |
122 m (400 ft) |
|
Antennas |
(3) Dual-Band Internal |
|
Antenna Gain |
2.4 GHz: 3 dBi, 5 GHz: 3 dBi |
|
Wi-Fi Standards |
802.11 a/b/g/n/ac |
|
Wireless Security |
WEP, WPA-PSK, WPA Enterprise (WPA/WPA2, TKIP/AES) |
|
BSSID |
Up to Four per Radio |
|
Mounting |
Wall/Ceiling (Kits Included) |
|
Operating Temperature |
-10 to 70° C (14 to 158° F) |
|
Operating Humidity |
5 - 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
1Only the single-pack of the UAP-AC-EDU includes a PoE adapter.
2Speed and Range values may vary and are based on optimal environments.
