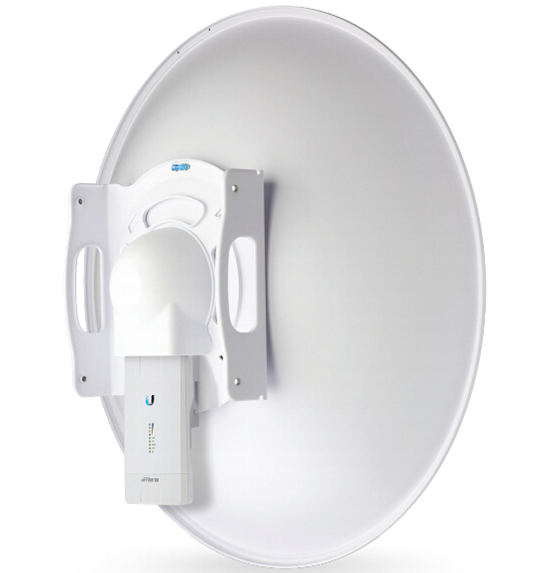

AF-5G23-S45 Antennas For Communication 5G Dual Polarization
UBNT AF-5G23-S45 AF-5X dedicated antenna 5G 23dbi 45 degree dual polarization
Installation Requirements
-
5 GHz airFiber radio (sold separately)
-
13 mm wrench
Other Requirements
-
-
Clear line of sight between airFiber radios
-
Clear view of the sky for proper GPS operation
-
Vertical mounting orientation
-
Mounting point:
-
At least 1 m below the highest point on the structure
-
For tower installations, at least 3 m below the top of the tower
-
-
Ground wires – min. 10 AWG (5 mm2) and max. length: 1 m. As a safety precaution, ground the airFiber radio to grounded masts, poles, towers, or grounding bars.
-
|
|
WARNING: Failure to properly ground your airFiber radio will void your warranty. |
|---|
-
-
(Recommended) 2 Outdoor Gigabit PoE surge protectors
-
|
|
Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes. |
|---|
-
Outdoor, shielded Category 6 (or above) cabling and shielded RJ-45 connectors are required for all wired Ethernet connections.
Specifications
|
AF-5G23-S45 |
|
|
Dimensions |
378 x 378 x 290 mm (14.88 x 14.88 x 11.42") |
|---|---|
|
Weight |
3.4 kg (7.5 lb) |
|
Frequency |
5.1 - 5.9 GHz |
|
Gain |
23 dBi |
|
Max. VSWR |
1.5:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
190 N @ 200 km/h (43 lbf @ 125 mph) |
|
Polarization |
Dual Linear |
|
F/B Ratio |
33 dB |
|
ETSI Specification |
EN 302 326 DN2 |
|
Mounting |
Universal Pole Mount for |
