25m/Min PVC Tape Manufacturing Machine
PVC electrical tape coating machine for the industry cable insulation
Product Description
1. MAIN APPLICATION

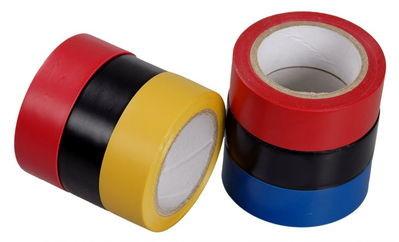

Used to produce PVC Electrical Insulation Tape;
Suitable material: Base material: PVC film (0.10-0.40mm);
. Glue:Primer: viscosity 20~100CPS; solid content 12~15%; Glue volume: 5~10g/m2(moist glue);
Surface: viscosity 10000~60000CPS; solid content 15~30%; Glue volume: 65~90g/m2(moist glue); Solvent rubber.
2. COATING TECHNOLOGY
Coating type of primer glue: Gravure roller transferred coating;
Coating type of surface glue: Comma roller coating;
Temperature control of oven: Proportional control valves to guarantee the accurate control;
Low tension canvas storage mechanism: It can store canvas of 10.5m;
Fully automatical surface winder: Three-roller no shaft winding, Paper tube clipping device, automatically film cutting;
Transition rollers by dynamic balance treatment: It guarantees the flexibility of rotation.
| Oven Length (m) | 36 (Depends on the process) |
|
Effective Width (mm) |
1000mm |
|
Model |
C2-2 |
| Mechanical Speed (m/min) | 10-25m/min |
| Heating Method | Steam/Hot oil |
